Automatic dryer loading system

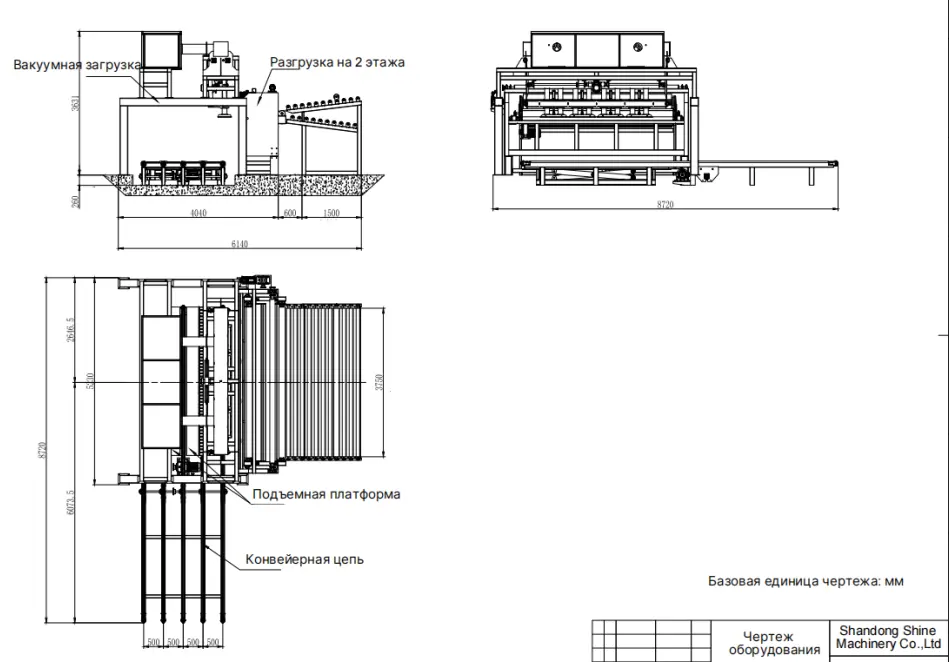

Dryer loading system forveneer(4*8ft)is a highly efficient and intelligent equipment designed to optimize the drying processveneer. The device includes the following components:
Conveyor chains (2 sets): ensure smooth and stable movementveneerat all stages.
Lifting platforms(2 sets): used for height adjustmentveneer, facilitating their interaction with other devices.
AutomaticallyohVacuumn1st download(1 set): Designed for automatic picking and movingveneer, ensuring accuracy and efficiency of operations.
cutting machine/PUnloading (1 set): used for separationveneeronto the top and bottom layers, which then go into a double dryer.
Control cabinet (1 piece): centralizes control and monitoring of all equipment functions, providing intelligent control.
This automatic loader not only improves working efficiency, but also reduces the labor intensity of operations. Suitable for various scales of production lines, meeting the needs of efficient drying.
XcharacteristicsAnd
Number |
TOcategory |
Technical Parameters |
Note |
1 |
Working width |
3750mm |
|
2 |
Workersfloors |
2 |
|
3 |
Frequency of slab feeding by vacuum grippers |
3-4seconds/time |
|
4 |
Vacuum gripper cross-sectional dimensions |
3750X150mm |
|
5 |
Number of vacuum grippers |
1kit |
|
6 |
Vacuum gripper material |
Alloy material |
|
7 |
Vacuum grip fan speed |
2900 r/min |
|
8 |
Vacuum Grappler Fan Airflow |
5000 m3/min |
|
9 |
Vacuum Gripping Fan Full Pressure |
500Pa |
|
10 |
Conveyor chains |
Length 9.5 meters, width 2 meters. |
2pcs. |
11 |
PLC |
Mitsubishi |
|
12 |
hydraulic scabbardichnyth lift |
Lifting stroke1.0-1.5m |
2pcs. |
13 |
Compressed air pressure |
0.4-0.8MPa |
|
14 |
Free compressed air consumption |
2m3/min |
|
15 |
Dimensions |
6140 X 8720 X 3631mm |
