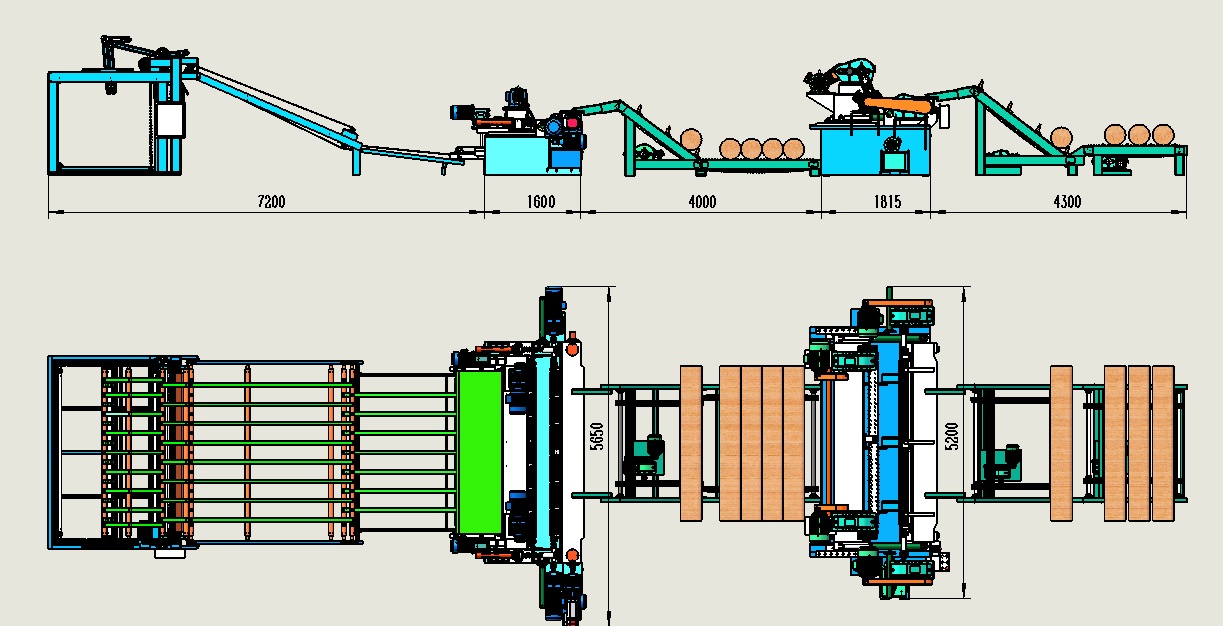

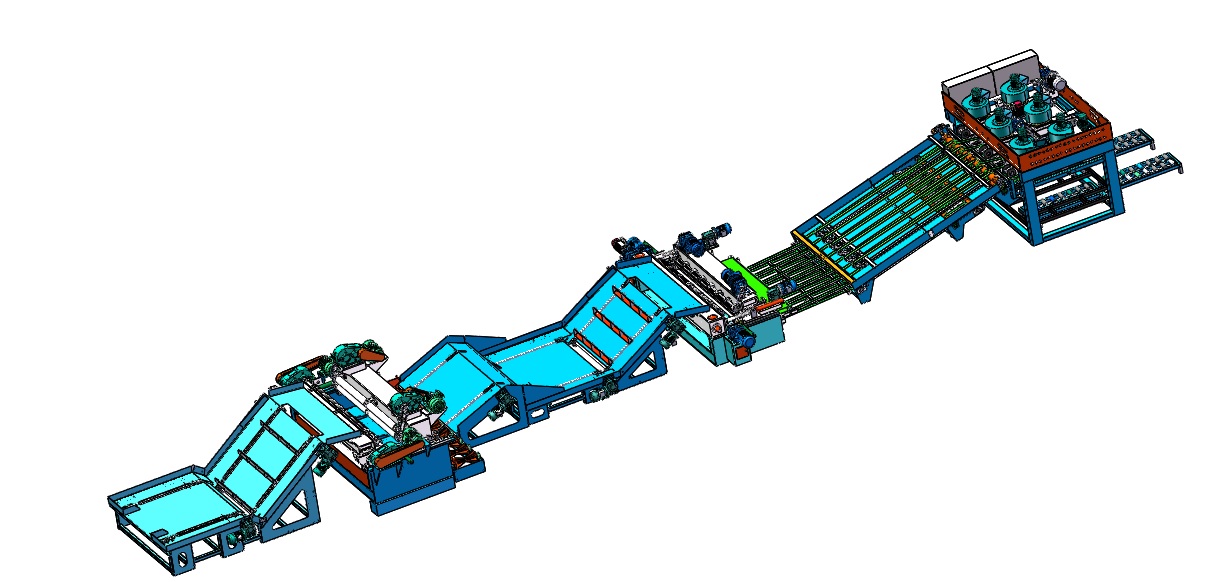

Technological peeling line with dimensions of 2600 mm
Max. wood length: 2600 mm
Max. diameter: 500 mm
Veneer peeling thickness: 0.4-3.6mm
Total length: approximately 26 m
General power: approximately 100 kW
Peeling speed: 46-65 m/min
Overall performance: 7 cu. at one o'clock.
Log loading device
Size: 4800x2800x1740mm (including log storage platform 3000X2800X775mm)
Power: 4.4 kW
Availability of a log leveling system
debarking machine
Max. log length: 2600 mm
Max. log diameter: 500 mm
Power: single roller 7.5 kW
Double Roller: 11 kW
Hydraulics: 4 kW
Size: 4900X2200X1050mm
The presence of a conveyor for logs: Yes
Weight: 6000 kg
Log feeding platform
Size: 4430X2800X1380mm (with log storage platform 2800X2800X820mm)
Power: 4.4 kW
Availability of a log leveling system
peeling machine
Max. log length: 2600 mm
Max. log diameter: 500 mm
Power: single roller 7.5 kWh 2 pcs
Double Roller: 11 kW x 2 pcs
Loading: 11 kW
Hydraulics: 4 kW
Conveyor: 3 kW
Pruning: 3 kW
Blade adjustment: 2.3 kW x 2 pcs (servo motor)
Dimensions: 6100X2150X1600mm
Weight: 12000 kg
Weight: 7400kg
stacker
Size: 6100X3500X2680mm (including veneer conveyor 4200x3052x1760mm)
Power: 18.4 kW
Max. speed: 65 m/min
