4ft log debarker

All-in-one high speed servo rotary machine, high speed, daily output can replace the working capacity of three machines, saving resources and labor for upper equipment. High cleaning performance, high performance, little damage to wood.

  Contact Now E-Mail Telephone WhatsApp
Product Details

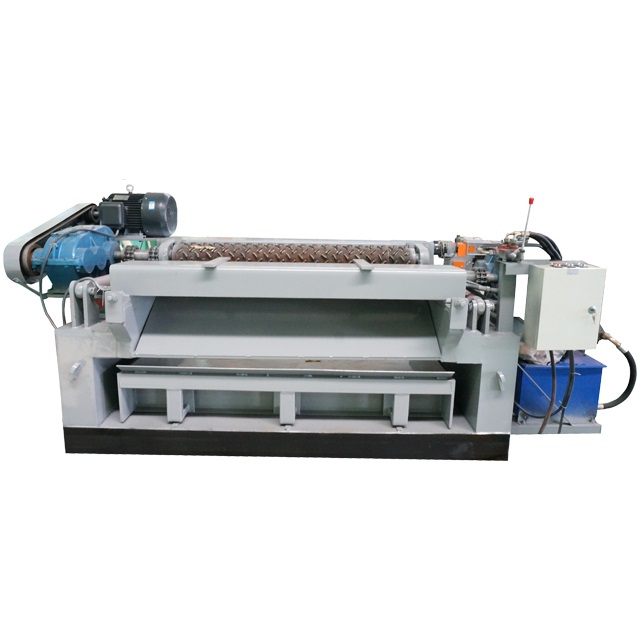

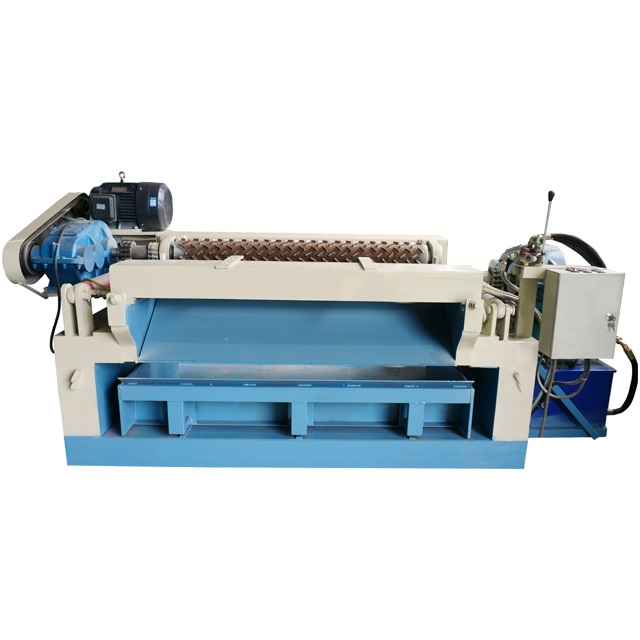

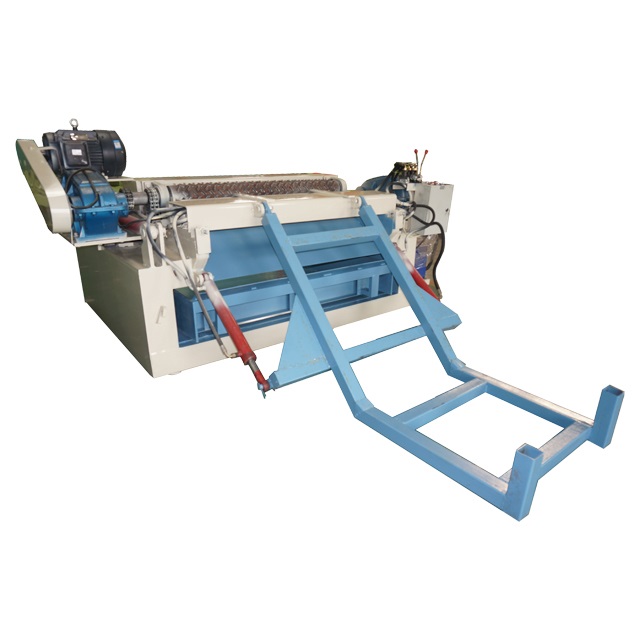

4 feet debarkers

This machine can debark wood, also known as debarking machine, which is one of the products of woodworking equipment. The bark remover is divided into the normal model 4ft bark remover, the advanced model 4ft bark remover with increased load capacity, and the hydraulic bark remover.

It is suitable for eucalyptus, pine, poplar and birch, etc. According to the bark removal principle, the skin of the log is removed and the log is straightened. The hydraulic feeding mechanism can load the logs quickly and efficiently, remove the bark and make them round.

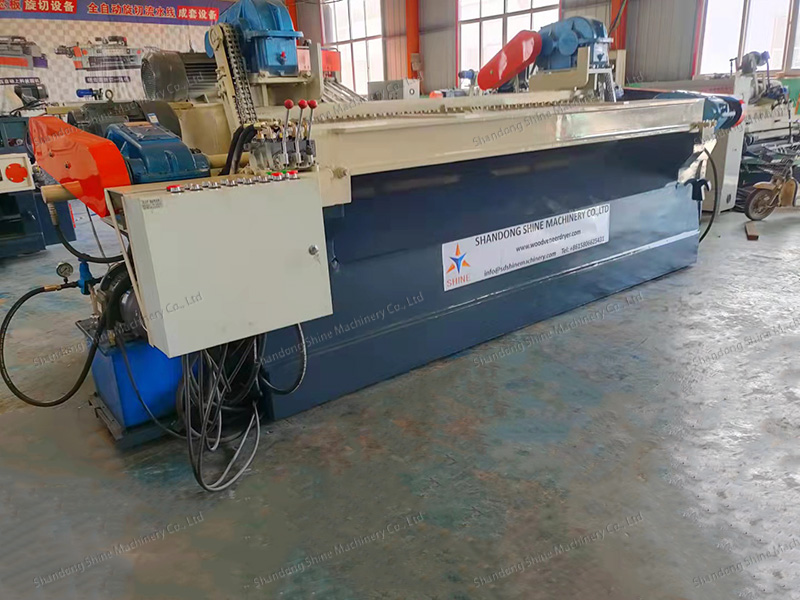

Окорочный станок

Features of 4ft Log Debarker:

1. The double roller moves forward and backward, which is convenient for loading and unloading wood, which improves the speed of 1. stripping work.

2.Reasonable design, stable operation of the machine, easy operation.

3.Adopting hydraulic feeding system, the pressure can be customized for different wood density.

4. Working width and opening stroke can be customized according to customer's requirements.



Type debarker

Round log length (mm)

1300

Round log diameter ( mm )

Max 600 - wood core 80

Find the circle thickness range ( mm )

1,0-4.0

Host line speed (m/min)

50 m

Power of main and auxiliary motor (kW)

Double roller motor 11kw

One roller motor 11 kW

Oil pump motor 5.5KW

double roller ( mm )

180

Total weight (kg)

3200

Dimensions ( mm )

3500-2100-1300

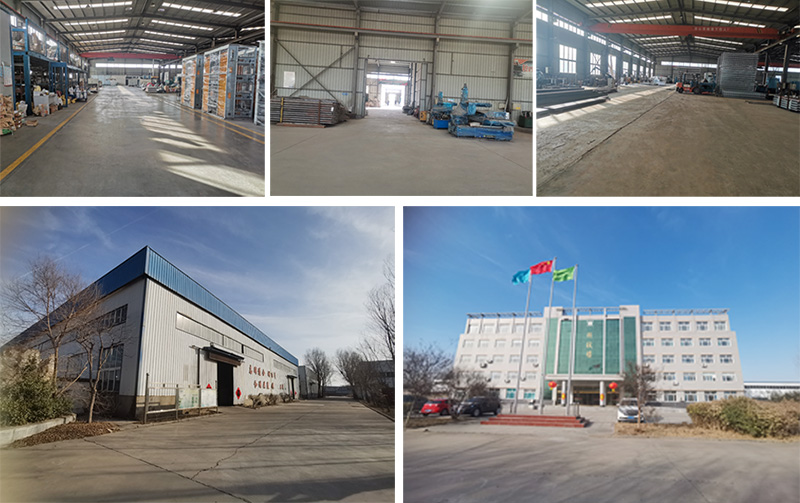

Our Factory

Наш завод


Certification

Сертификация


Our services

Pre-sales services:

1. Free consultation on the entire line of plywood production equipment

2.Offer reasonable plan and free design according to customers' special requirements to help choose equipment.

3.Welcome to our factory


Services during sales:

1. Inspection of the machine before leaving the factory.

2.Installation and configuration of equipment abroad

3. Training of first line operators.


After-sales services:

1. Online service 24 hours a day

2.Providing a video with the installation and configuration of equipment

3. Providing technical support (Technical phone: +8619653165764). Service of departure to the client is possible.
