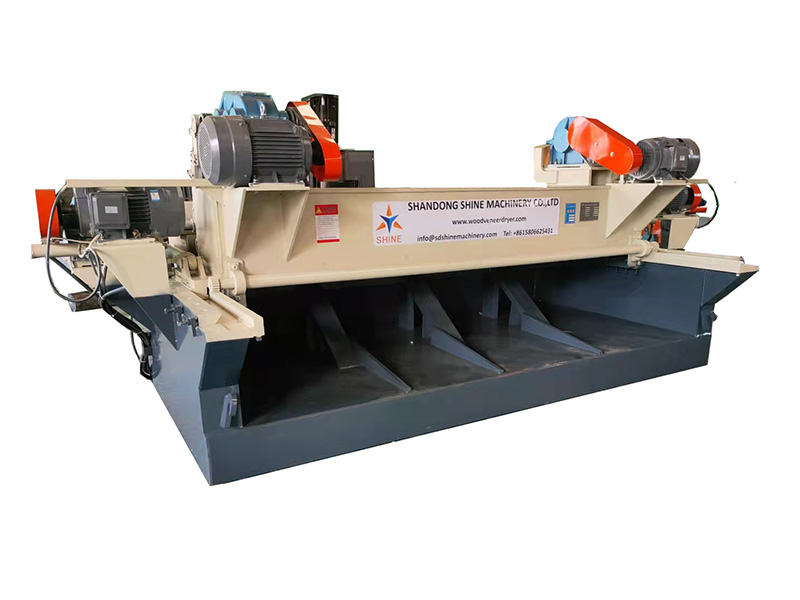

Churak debarkers 4/8 ft

Max. Churak Ø before processing: 600mm

Installed capacity: 27.5; 49.5 kW

Weight: 3600; 7000 kg


  Contact Now E-Mail Telephone WhatsApp
Product Details

Designed for removing bark from blocks with diameters up to 600 mm and lengths up to 1400/2800 mm and giving it a cylindrical shape for further peeling.


DESIGN FEATURES:

LOADING LOGS

Front loading of a log allows very fast (unlike spindle machines with end clamps) to load logs, as well as unload the prepared block for further peeling.
Thanks to this design, the machine can be easily integrated into automated peeling lines.
LOG ROTATION AND Clamping System

The rear rollers move back and forth automatically with the help of a hydraulic drive, on high-precision linear guides that reduce friction and allow for linearity in the processing of logs and the correct geometry of the resulting block for further peeling.
ROLLERS

The special design of the rotating rollers with convex cutters provide fast and reliable grip on the logs. Thanks to this, high productivity and high quality of log debarking is achieved.
AUTOMATIC LUBRICATION SYSTEM

Lubrication of all units occurs automatically, which allows you to spend less time on machine maintenance and, as a result, increases productivity.



ADDITIONAL EQUIPMENT:

LOG FEEDING SYSTEM

Loading conveyor for automatic feeding of logs to the debarker.
Allows you to build a debarker in a line, automate the work process and increase productivity.

BARKING KNIVES


Сертификация

Сертификация


Our Factory

Наш завод

Наш завод


Our services


Pre-sales services:

1. Free consultation on the entire line of plywood production equipment

2.Offer reasonable plan and free design according to customers' special requirements to help choose equipment.


3.Welcome to our factory

Services during sales:

1. Inspection of the machine before leaving the factory.

2.Installation and configuration of equipment abroad

3. Training of first line operators.


After-sales services:

1. Online service 24 hours a day

2.Providing a video with the installation and configuration of equipment

3. Providing technical support (Technical phone: +8619653165764). Service of departure to the client is possible.
