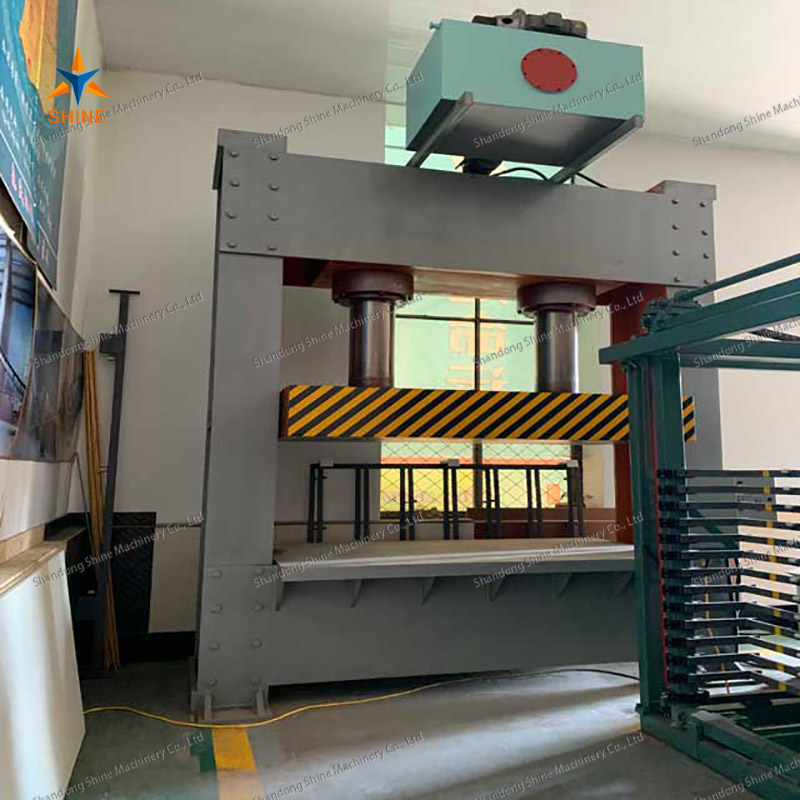

Press for cold pressing of veneer
The cold press is designed for pre-pressing veneer packs .
Product Details

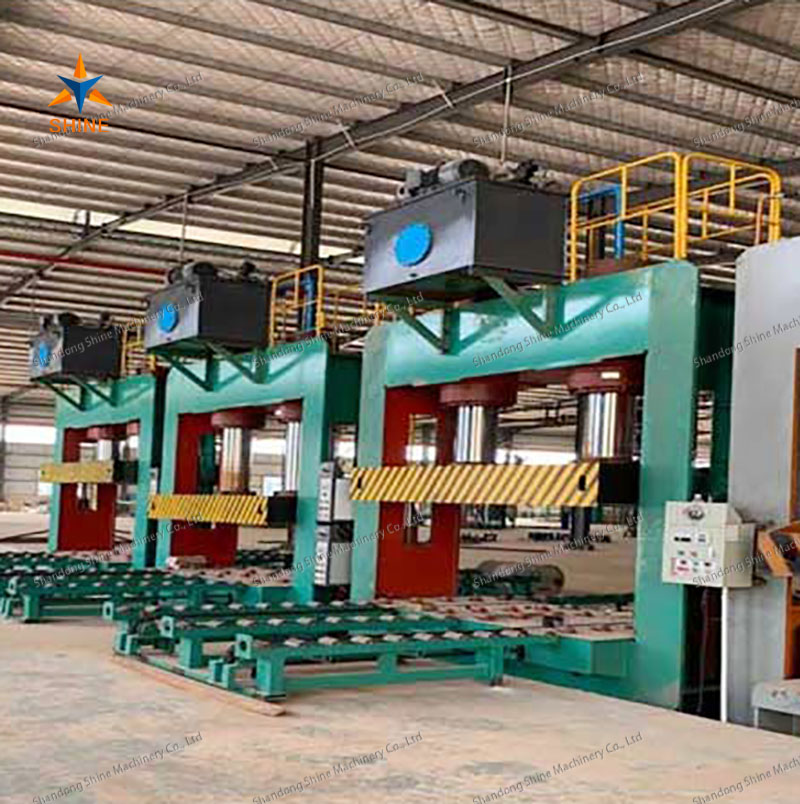

Press podpressovshchik for preliminary cold pressing of packages.
| Specifications | |
| Pressure (t) | 500 |
| Working size (mm) | 1700x1650 |
| Plate opening (mm) | 300 - 1300 |
| Max cylinder stroke (mm) | 1000 |
| Cylinder diameter (mm) | 360 |
| Number of hydraulic cylinders (pcs) | 2 |
| Plate thickness (mm) | 30 |
| Power, kWt) | 17,2 |
| Overall dimensions, mm) | 3500x2400x4300 |
