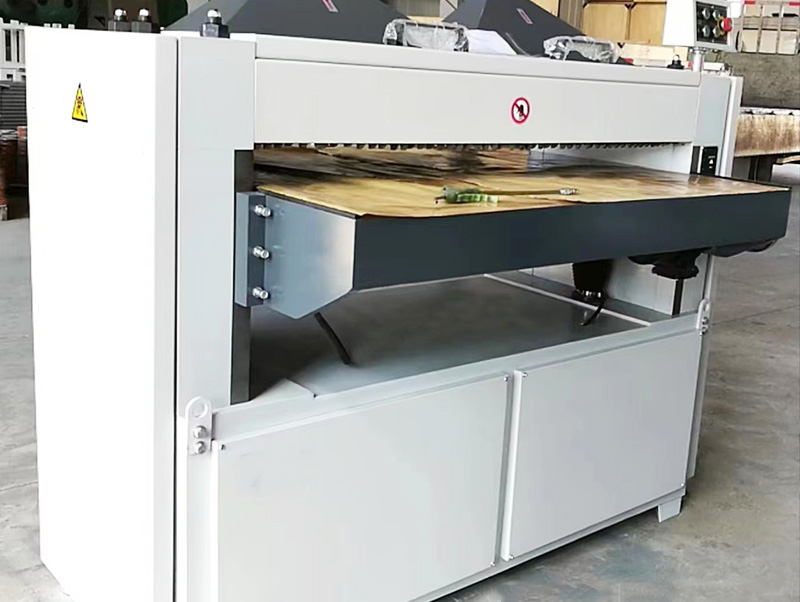

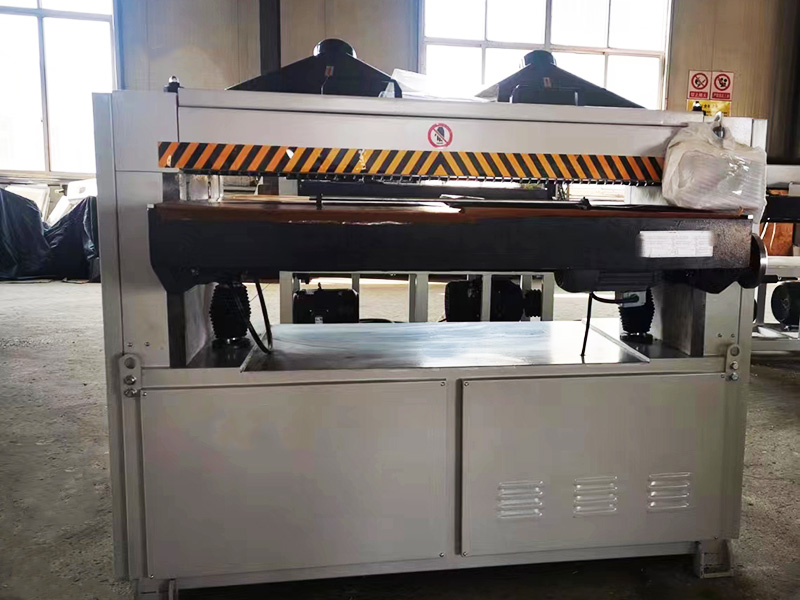

Thickness Cutting Machine
1. High efficiency and energy saving: Advanced pressure plate technology, which can level the wood surface quickly and efficiently and save energy.
2. High precision: the pressure plate and cutting are processed with high precision, which can ensure the evenness and smoothness of the wood surface.
3. Easy maintenance: It has a simple structure and is easy to maintain, which can increase the service life of the equipment.
4. Safe and reliable: Numerous protection measures to ensure the safety of operators and ensure the stability and reliability of the equipment.
5. Wide range of applications: suitable for leveling and planing various types of wood, which can meet the needs of various industries and fields.
Tired of uneven surfaces and time-consuming manual adjustments? Our thicknessing machine is your solution for fast, precise and reliable wood processing. Designed for heavy use, this machine transforms rough wood into smooth, uniform boards with ease, increasing both productivity and craftsmanship.
From small batches to high-volume production, this planer handles it all. Designed with a high-torque motor, precision cutting head and intelligent feeding system, it is the perfect partner for any serious carpenter or industrial workshop.
Why choose our thicknessing machine?
High Performance:The high material removal rate and wide planing ability optimize your workflow.
Consistent results:The precision cutting head ensures a smooth finish and precise thickness on each board.
Rugged Construction:Industrial-grade components ensure long service life even in continuous operation.
Operator-friendly:Intuitive operation and safety features make operation simple, safe and efficient.
Customizable Features:Available in a variety of sizes and configurations to meet your specific production needs.
Product Parameters of Thickness Planer
Model No |
Planer（MB10-10E） |
Max. planing width |
1000mm |
Planing thickness |
8-200mm |
Min. planing length |
≥300mm |
Max. Planing Quantity |
≤4mm |
Auto Feed Speed |
8; 12m/min |
Spindle speed |
4500-4600r/min |
Spindle motor power (kW) |
11 |
Feed motor power (kW) |
3 |
Lifting motor power (kW) |
0.75 |
Spindle cutting edge diameter |
Φ125mm |
Overall dimensions |
1205X1370X1470mm |
Exhibition & Customer Visits

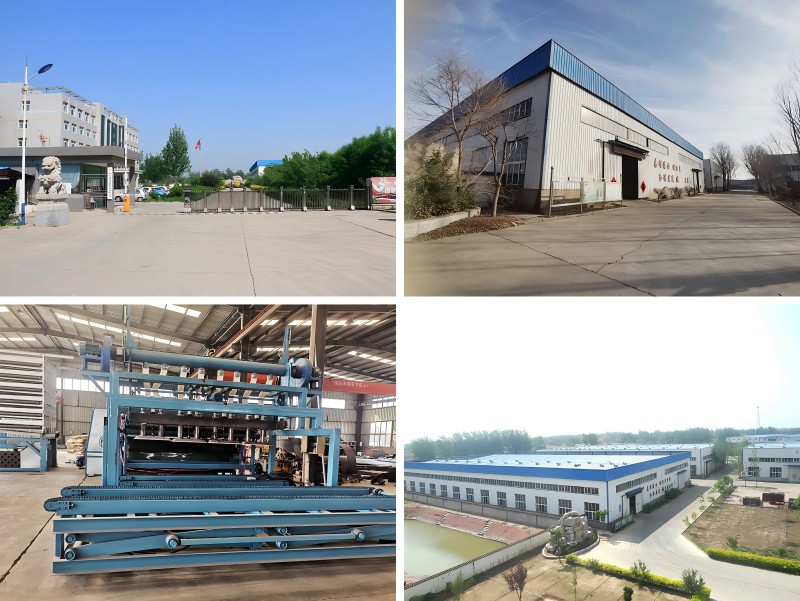

Factory
