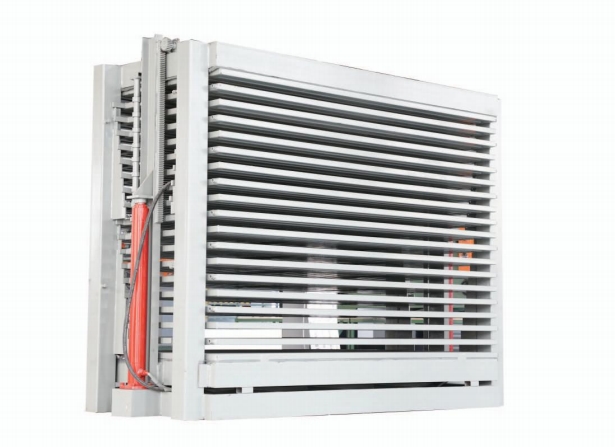

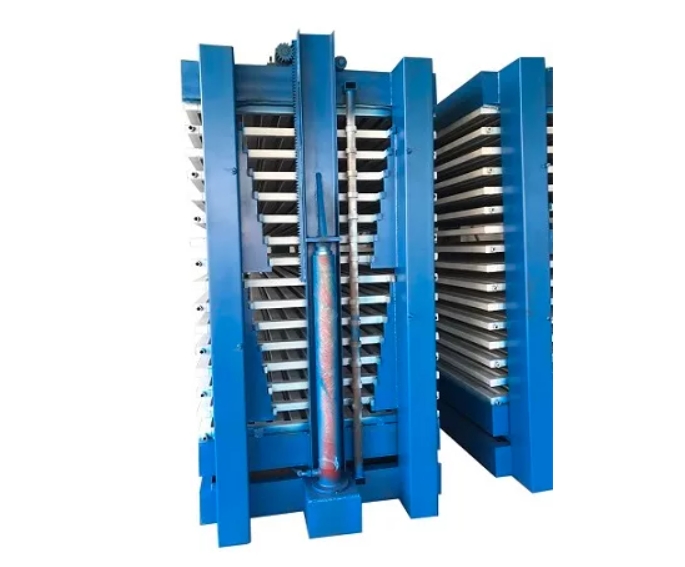

Veneer Dryer 15 Layer Veneer Dryer Hot Press Machine for Plywood
Used for continuous drying of veneer, easy to operate and maintain.
1. Solid and perforated boards with high heating efficiency can also make
The veneer is smooth and does not allow cracks to form during the drying process.
2. The groove lines on the surface of the hot plate help the steam escape.
This makes it easier to speed up drying and prevent the veneer from getting wet.
3. Simultaneous closing device allows you to close the dryer at the same time.
ensuring that all veneers have the same closure time and achieve the same result.
temperature.
4. Mitsubishi and Schneider Electric PLC control system.
Total pressure |
120 tons |
Veneer feed direction |
transverse |
Layers |
15 layers |
Layer space |
70 mm |
Solid slab quantity |
16 pcs |
Solid Slab Size |
2700*1370*42 mm (groove 20*20 mm) |
Cylinder diameter |
180mm*2 |
Hit |
1050 mm |
Hydraulic motor station |
11+7.5 kW |
Upper and lower beam |
500 mm |
Middle beam |
200 mm |
Simultaneous closing system |
|
Weight |
25000 kg |
Gabrity |
3450x1370x3200mm |
Certification
Shine Institute
Our services
Pre-sales services:
1.Free consultation on the entire line of equipment for plywood production
2.Offer reasonable plan and free design according to customers' special requirements to help select equipment.
3.Welcome to our factory
Services during sales:
1. Inspect the machine before leaving the factory.
2.Installation and configuration of equipment abroad
3.Training of first line operators.
After sales services:
1.Online service 24 hours a day
2.Providing videos with installation and configuration of equipment
3.Providing technical support (Technical phone: +8619653165764 ). A visit to the client service is available.
