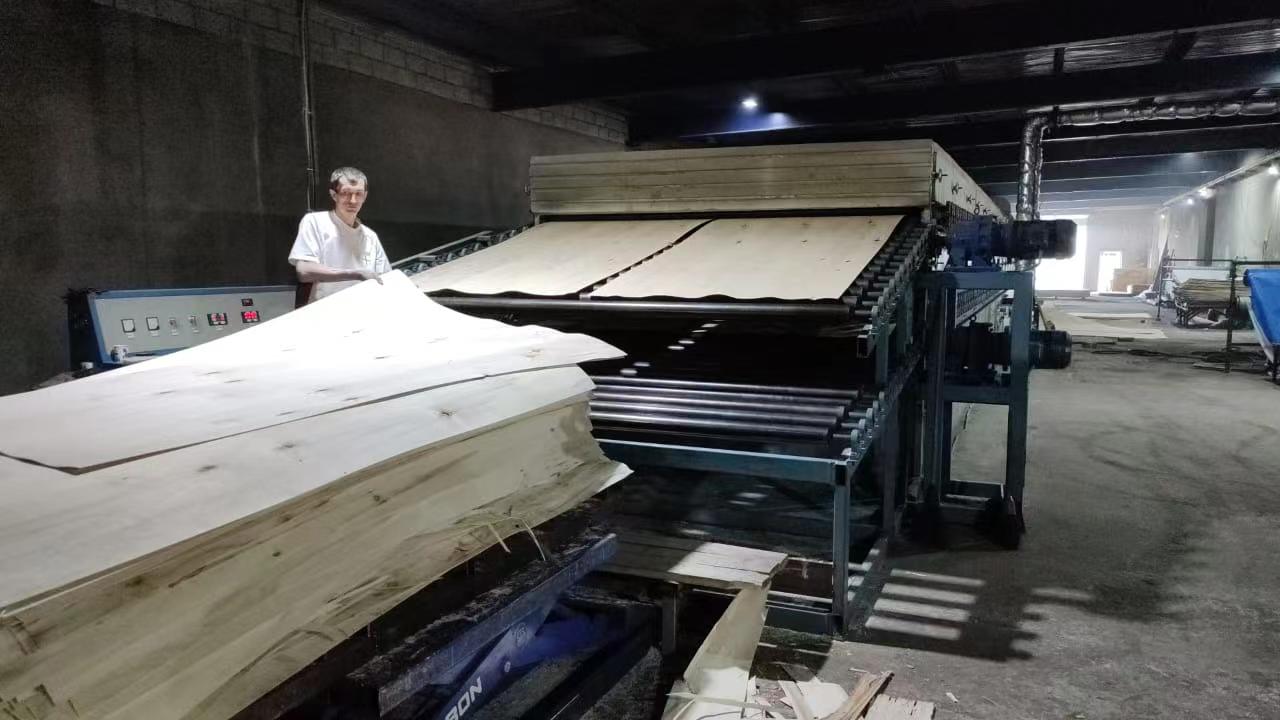

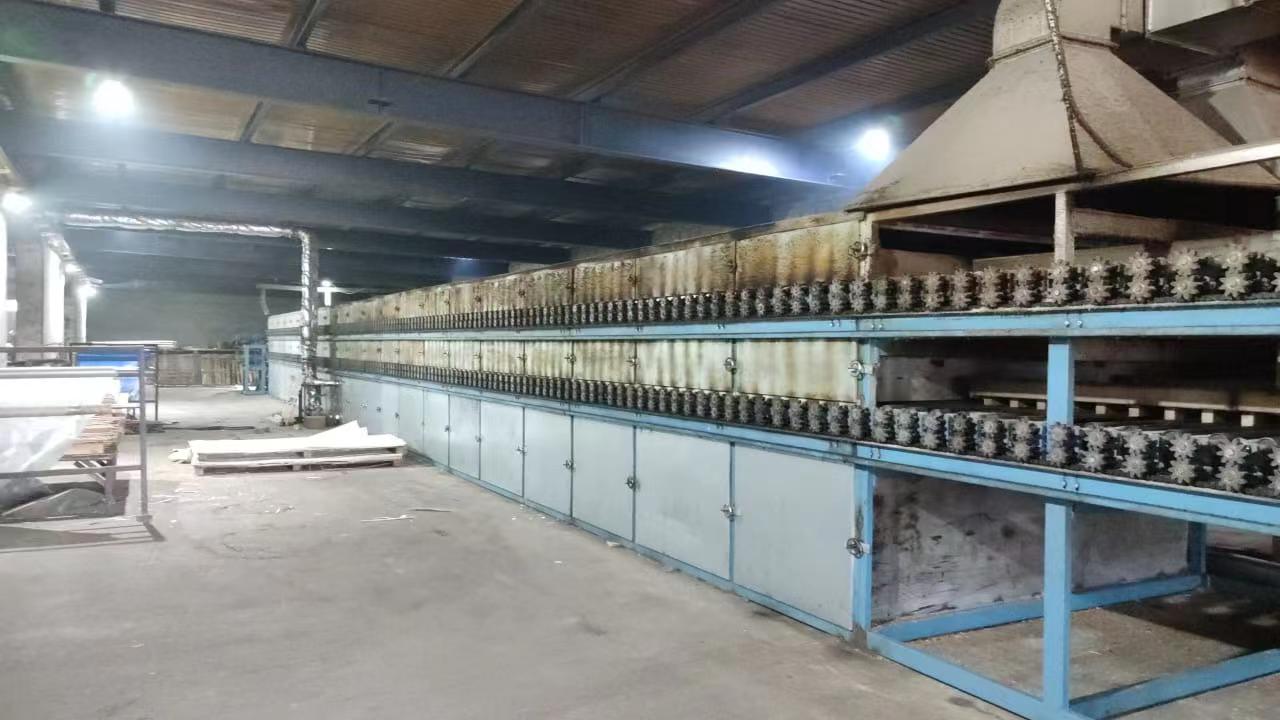

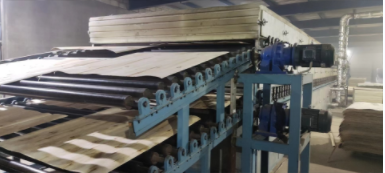

Roll dryer for drying veneer

The roller dryer is designed for drying plywood veneer with a thickness of 0.8 to 8 mm. The heat carrier in veneer dryers is thermal oil, steam or hot air. The heat carrier in veneer dryers is thermal oil, steam or flue gases.
  Contact Now E-Mail Telephone WhatsApp
Product Details

Сушилка для шпонаоборудование для сушки шпона

Specifications
Working width (mm) 3000
Number of floors (pcs) 2
Heating section length (mm)  7x4000=28000
Cooling section length (mm)  1x4000=4000
Travel speed (m/min)  5,0-22
Conveyor power (KW)  5 , 5 x 2
Hot air fans power (KW)  5.5x11.0
Cooling Fan Power (KW)  5,5
Total Power (KW)  77
coolant    steam/thermal oil/flue gases
Veneer thickness (mm)  0,8-8,0
Final Moisture (%) 10 ± 2
Productivity (m3/hour) 1 ,5- 2
Drying dimensions (mm) 38000x4500x2950
