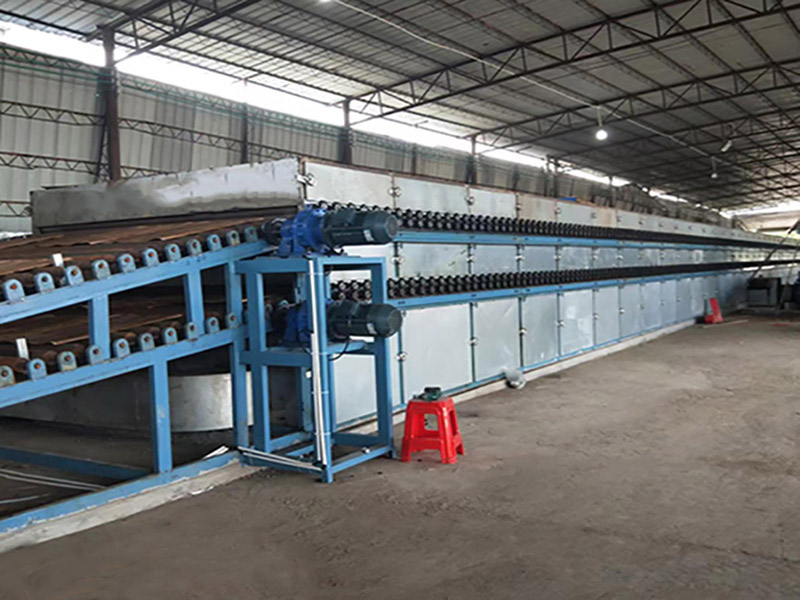

Roller drying chamber for veneer Shine GTH30-56-2

Roller dryer GTH30-56-2 (2-story) is designed for drying plywood veneer.

The coolant in veneer dryers is hot air (thermal oil or steam).

Productivity: from 3.5-4.0 m3/hour.

Drying temperature: 130-190 ºС.

Veneer thickness: 0.8–8 mm.

Final moisture content of veneer: 10 ± 2%.

We can also produce products according to individual customer orders (especially for cold regions). Welcome to contact us for a consultation.

Mobile/Whatsapp:+8619653165764
Mail:iliya@sdshinemachinery.com



  Contact Now E-Mail Telephone WhatsApp
Product Details

Purpose

The roller veneer dryer is designed for drying veneer with a thickness of 0.8 to 8 mm.

Application areaThis equipment is used in wood processing plants and in plywood mills of all sizes that produce veneer and plywood.


The veneer passes through the machines longitudinally, where it is compressed by upper and lower drive rollers. Streams of hot air from boxes with nozzle blast are directed onto the veneer from above and below. The built-in boiler in the dryer burns the veneer (biomass), and the resulting heat is transferred to the dryer through a heat exchanger.

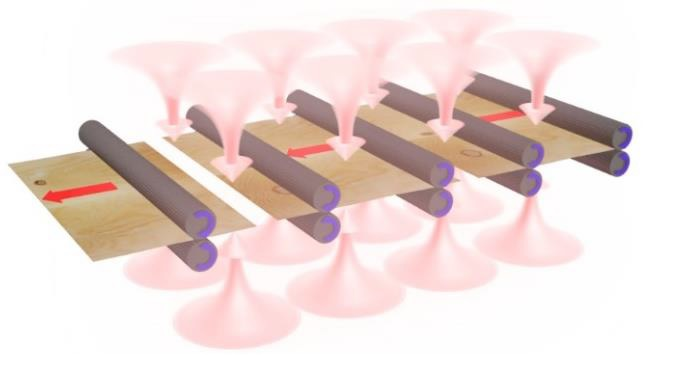

Processing scheme

Processing scheme

Design features

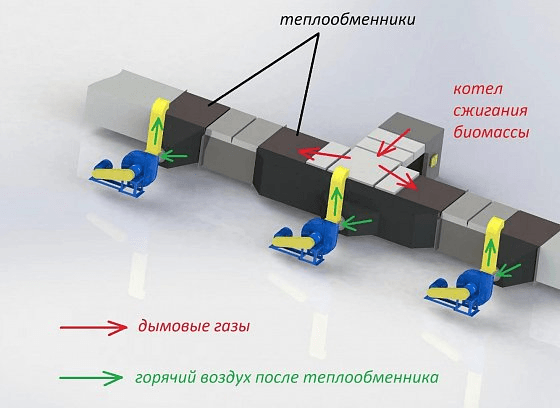

Heat exchanger

Flue gases enter the dryer through a heat exchanger, which eliminates the appearance of soot and smoke on the veneer and inside the dryer, thereby ensuring the cleanliness of the veneer.

Heat exchanger

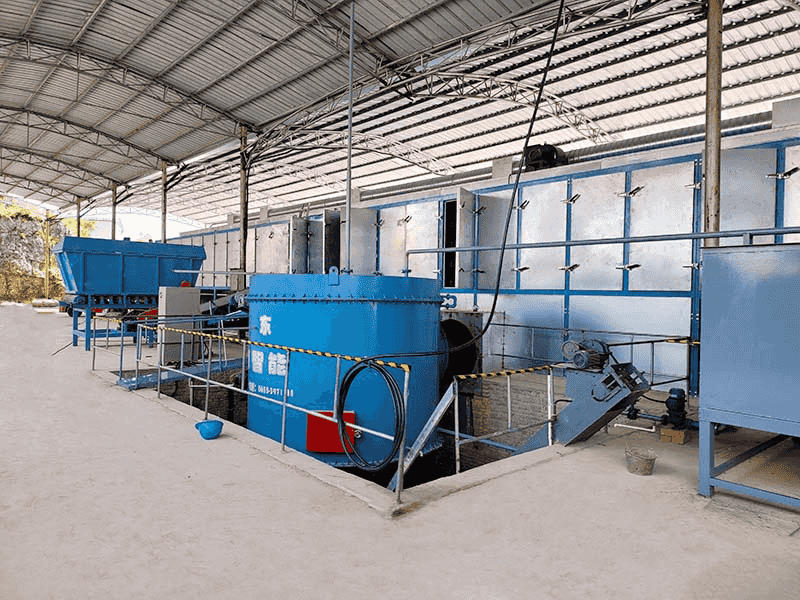

Boiler(biomass)

For the selected dryer configuration, a boiler with appropriate parameters is selected, which guarantees the required dryer performance. It is possible to use the heat generated by the combustion of various wood wastes with a thermal energy conversion coefficient of more than 90%.

Boiler(biomass)

Specifications

Model No.

GTH30-56-2

Working width

3000mm

Number of floors

2

Roller material

Q235B, φ89 steel pipe

Heating zones

52m

Cooling zone

4m

Veneer thickness

0.8-8mm

Final humidity

Fresh key up to about 10%

Heating material and drying temperature

Waste wood, adjustable from 130 to 190℃. There is an automatic temperature control and speed adjustment system, which can guarantee the same moisture content.

Drying capacity (m³/h)

3.5-4.0 cubic meter

Feed rate

5-22m/min,16A circuit

Hot air fan power

5.5kW(13pcs)

Conveyor power

7.5kW,frequency regulation(2pcs)

Cooling fan power

5.5kW(1pcs)

Exhaust fan power

11kW(2pcs)

Power of 6 ton boiler

16.5kW

general power

138.5kW

Actual electricity consumption

Approximately 90 kW per hour

Coverage area approx.

62 X 9 X 2.95m

Electrical components

Chinese brand or Schneide

PLC

Chinese brand or Mitsubishi

Veneer dryer 2-storey


Additional(selective)

1) Automatic fuel supply system for the burner

2) Semi-automatic veneer collection system

3) Automatic veneer feeding and separating system

4) Semi-automatic system for feeding and separating veneer

5)Schneider Electric components; PLC (PLC) Mitsubishi

6)Supports various heat transfer fluids such as steam, thermal oil, flue gases

Main components for veneer dryer.

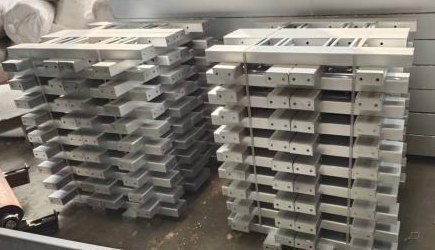

Main frame material

H-shaped steel beams, state standard rectangular pipes (50*100), square pipes (50*50), channel, steel sheets. The connection between the frames is carried out using a screw connection.

Main frame material

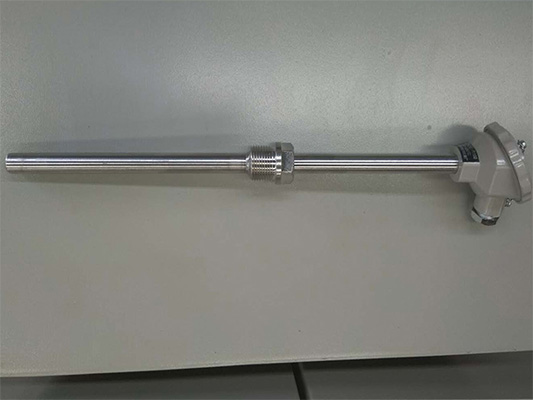

Drying temperature control sensors

The heating compartments contain a group of sensors designed to monitor the temperature of the drying process in order to ensure uniform humidity within the established parameters.

Drying temperature control sensors

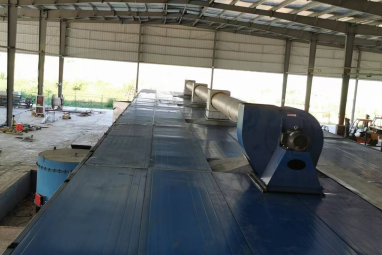

Moisture removal system

Specially designed for use in cold regions.

Moisture removal system

Video clip

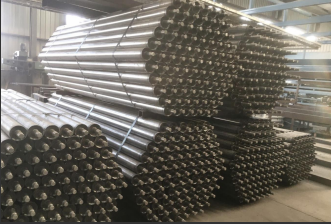

The rollers have a diameter of 89 mm and a wall thickness of 2.75 mm, equipped with Teflon-coated bearings provided by a quality manufacturer with over ten years of supply experience. These bearings are highly resistant to wear and temperature influences. The distance between the rollers is 180 mm.

Video clip

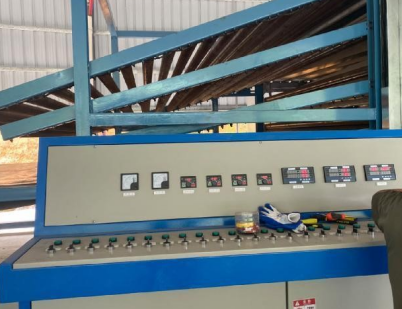

Control Panel

The control panel displays all operating parameters of the drying chamber. This panel has an intuitive interface that allows you to quickly monitor and, if necessary, make adjustments to work processes.

Control Panel

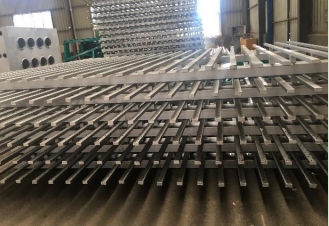

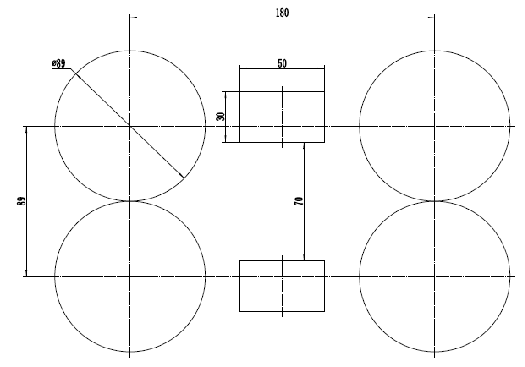

Air duct

Size:30*50mm,thickness:1mm

Air ductAir duct

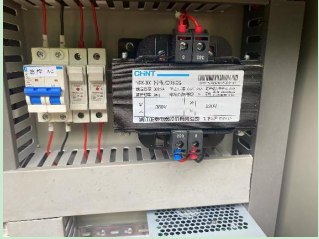

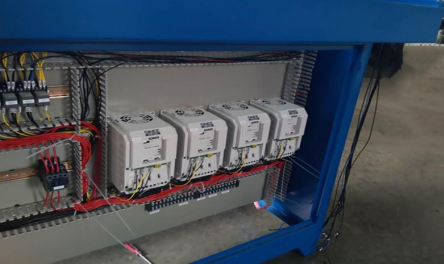

High-quality electrics

High-quality electricsHigh-quality electrics

Dried veneer

Dried veneer
