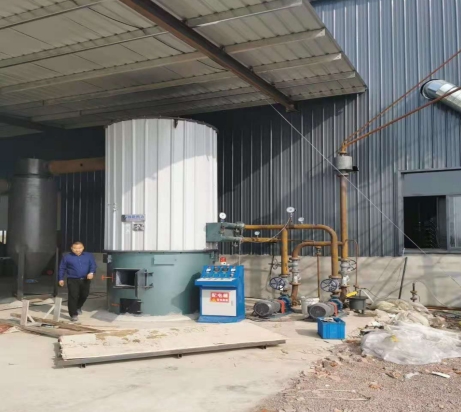

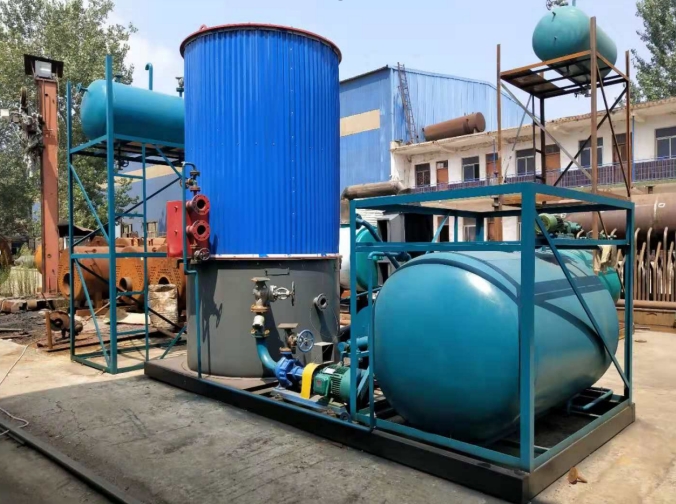

Thermal oil furnace or thermal oil boiler for the production of veneer and plywood

SHYGL biomass vertical thermal oil furnace is a new type of special boiler, also known as thermal oil furnace. It has low pressure and high temperature performance, and the heating temperature can reach liquid phase 310°C. Organic heat transfer fluids can be used for heating in a variety of industrial situations that require uniform and stable heating and do not allow direct flame heating. Heating temperatures range from 150°C to 310°C.

SHYGL organic cooled vertical furnace uses coal and biomass as fuel and thermal oil as medium. It uses a hot oil circulation pump to circulate the medium in the liquid phase. It transfers thermal energy to the heating equipment, and then returns to the heating furnace for reheating. It has high operating temperature at low pressure, and can realize high-precision control of the operating environment. The system has a high heat utilization rate, is easy to operate and maintain, and is an ideal first-choice heating equipment that is safe, efficient and energy-saving.

Contact Now E-Mail Telephone WhatsApp

Product Details

The working process of SHYGL vertical biomass organic coolant liquid phase furnace is that the fuel is manually fed into the combustion furnace, and the generated high-temperature flue gas passes through the smoke barrier wall through the arch and enters the inner chamber. coil for forming a radiant heating surface. Moving forward, after turning 180°, it enters the interlayer zone of the inner and middle coils, forming a convection heating surface. The end of the interlayer then rotates 180° and then enters the second interlayer area of the middle and outer coils. It enters the dust collector at the rear of the second interlayer and is directed into the chimney through the exhaust fan. and is released into the atmosphere.

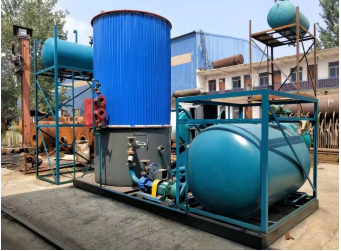

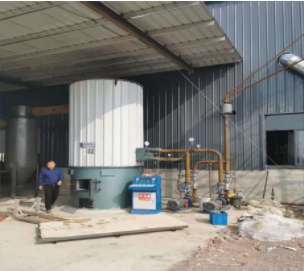

Термомасляный котел

Technical parameters of an organic coolant furnace with a capacity of 5 million kcal

Name	Unit	Specification
Rated thermal power	KW	5900
Nominal working pressure	MPa	1,0
Hydrostatic test pressure	MPa	1,5
Nominal outlet oil temperature	℃	320
Nominal oil inlet temperature	℃	295
Design thermal	Efficiency %	86,08
Grate area	m²	5,46
Body oil tank capacity	m³	6,7
Transport dimensions of the boiler (length×width×height)
Upper furnace body 32T	mm	842630383300
Lower furnace body 17T	mm	452630401600
Ash bucket 3T	mm	390032001600
Boiler transport weight	etc	52
Exhaust fan	kW	55
Ventilator	kW	twenty two
Circulation pump (one main and one backup)	kW	90*2 sets
High pressure oil pump	kW	2,2
