4*8 - ft hot press 500t /15 bays

Maximum pressure: 1200 t.

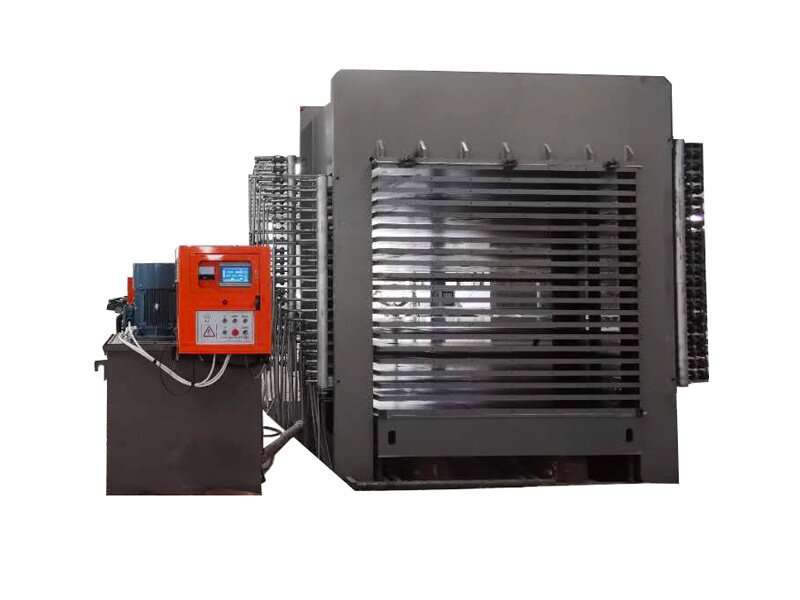

Hot plywood gluing press, frame, 15 bays, 16 hot plates.


  Contact Now E-Mail Telephone WhatsApp
Product Details

Veneer is a natural material that is often used in furniture production. It is a thin sheet of wood that is removed from tree trunks in a special way. The veneer thickness ranges from 0.5 to 1 mm. Most often, veneer is used for finishing tables, cabinet fronts and other cabinet furniture made from chipboard, MDF and other wood materials.

One way to process veneer is to use a hot pressing plywood press. It is a vertical type electro-hydraulic machine that is used to create laminated plywood. It has a durable design and is easy to use. Thanks to rapid heating and pressing cycles, it can create plywood panels in a variety of sizes and thicknesses. This allows us to produce a wide range of products for different areas. The machine is equipped with advanced heating elements and a hydraulic system that ensures even heat distribution and pressure application during the pressing process. The result is strong and durable panels with excellent adhesive properties. When operating, the machine can use various heat sources such as gas, steam or electricity. It is also equipped with safety features that ensure a safe working environment. The press format, its dimensions, pressure force and number of layers can be customized according to the needs of the enterprise.


Options


Maximum pressure, t

1200

Loading direction

Transverse

Number of spans, pcs

15

Distance between spans, mm

70

Number of hot press plates, pcs.

16

Dimensions of hot press plates, mm

1370 x 2700 x 42

Total weight, t

33

Power

20.5 kW.

Certificate of quality

               ISO9001, CE

Overall dimensions, mm

                3550*1370*4650mm


Certification


Сертификация


Shine Institute


Завод Shine


Our services


Pre-sales services:

1.Free consultation on the entire line of equipment for plywood production

2.Offer reasonable plan and free design according to customers' special requirements to help select equipment.

3.Welcome to our factory


Services during sales:

1. Inspect the machine before leaving the factory.

2.Installation and configuration of equipment abroad

3.Training of first line operators.


After-sales services:

1.Online service 24 hours a day

2.Providing videos with installation and configuration of equipment

3.Providing technical support (Technical phone:  +8619653165764). A visit to the client service is available.
