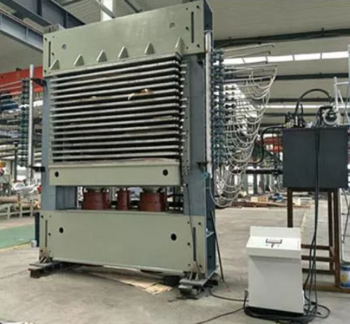

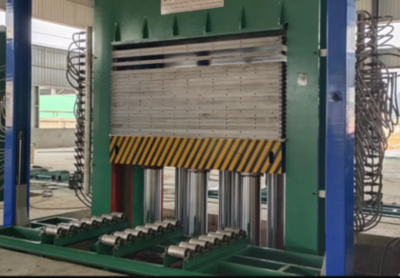

Hot press for plywood
PURPOSE:
For hot pressing under a given pressure of a assembled package of veneer sheets coated with glue.
APPLICATION AREA:
Production of veneer and plywood.
Product Details
Peeled veneer is dried to a moisture content of 8-12% and glued under high pressure, heating the veneer package to the required temperature. The temperature of the multi-span hot press slabs is selected depending on the type of glue, wood type and plywood thickness.
| Specifications | |
| Press pressure (t) | 600 |
| Number of spans (pcs) | 16 |
| Distance between plates (mm) | 70 |
| Slab dimensions (mm) | 1700x1650x42 |
| Number of slabs (pcs) | 17 |
| Number of hydraulic cylinders (pcs) | 4 |
| Diameter of hydraulic cylinders (mm) | 280 |
| Working stroke (mm) | 1100 |
| Slab closing speed (m/min) | 4 |
| Working pressure (MPa) | 25 |
| Installed power(KW) | 26 |
| Dimensions (mm) | 2800*1750*5390 |
| Machine weight (kg) | about 40000 |
