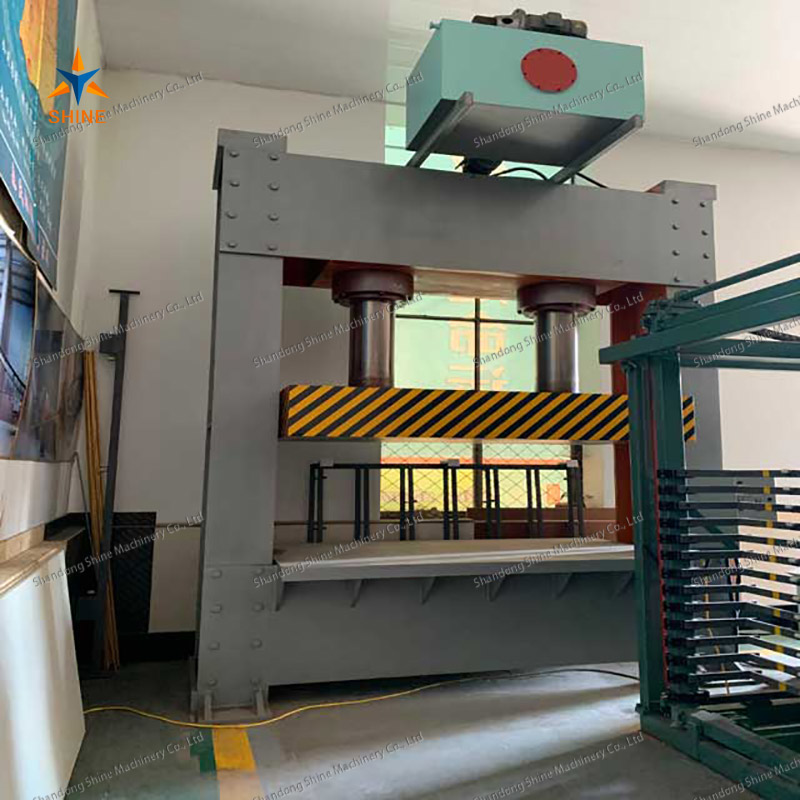

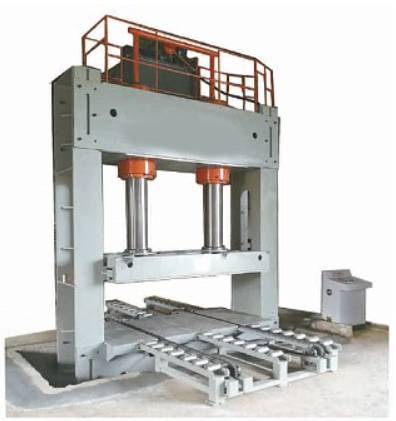

Plywood pre-presser

Advantages

Conveyor for loading and unloading

Large cylinders for pressing force and separate cylinders for quick return lifting

Diameter touch control panel, Schneider electronics


  Contact Now E-Mail Telephone WhatsApp
Product Details
In the production of plywood, pre-compression of packages is used in cold presses at a specific pressure of 4-8 kgf/cm2. Pre-pressing plywood allows for premature curing of the glue, reducing the time for loading bags into the hot press and curing time, and also improves the quality of the plywood.

Specifications
Pressure (t) 500
Working size (mm) 2700x1370
Maximum slab opening (mm) 1800
Maximum cylinder stroke (mm) 1050
Cylinder diameter (mm) 360
Number of hydraulic cylinders (pcs)
Slab thickness (mm) 30
Power, kWt) 16
Overall dimensions, mm) 3500x2400x4300
Weight (kg) 16000

Подпрессовщик фанерыХолодный пресс для фанеры
