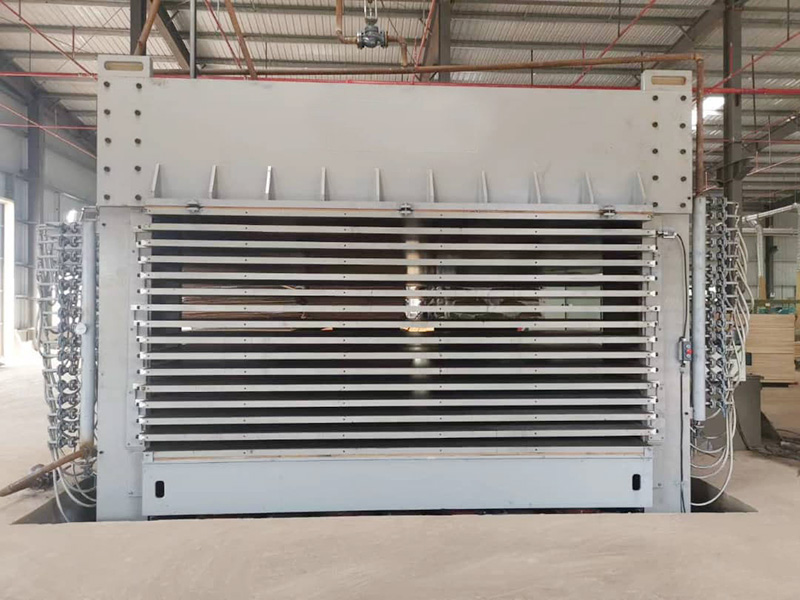

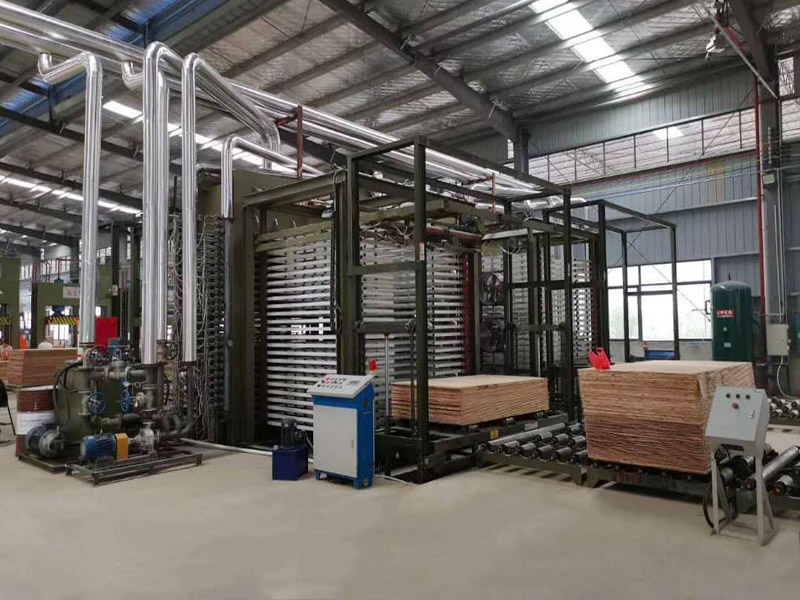

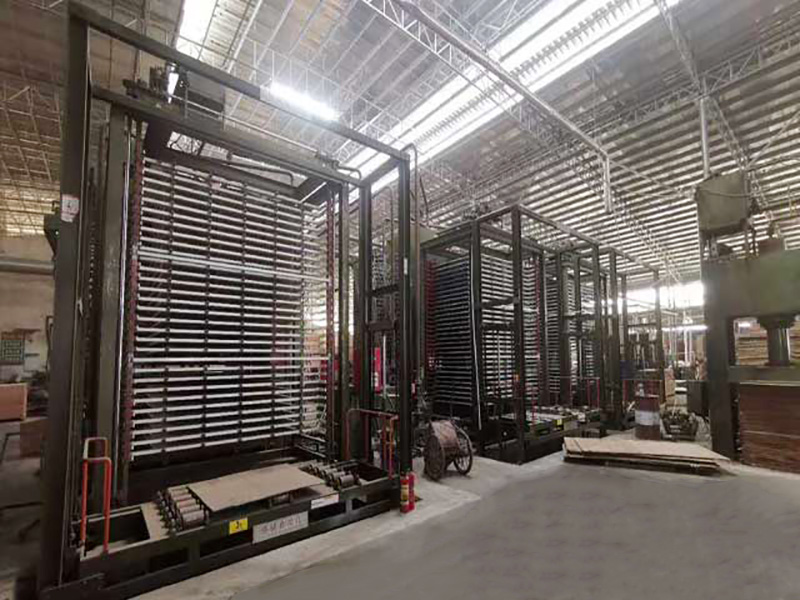

Hot press for plywood production 500 tons 15 layers
Product application - Hot pressing machine for the production of 15-ply plywood.
Shine is capable of producing both hot and cold plywood presses with a wide range of openings, capacities and other specifications. Tanks are usually designed in the range of 500 to 800 tons, however this can be modified according to customer requirements. In addition, we can also customize stroke size, pressure and plate spacing, so be sure to contact us for more details.
Main advantage:

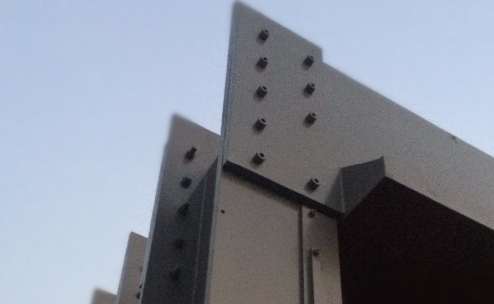

Detachable frame, convenient to install and load.

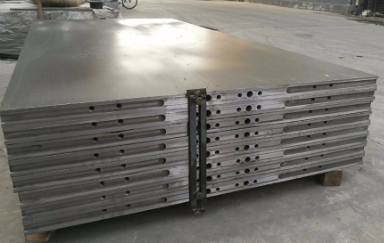

The hot plate is made of carbon steel, high precision, strong and durable.
PLC control system, microcomputer, manual/automatic control.

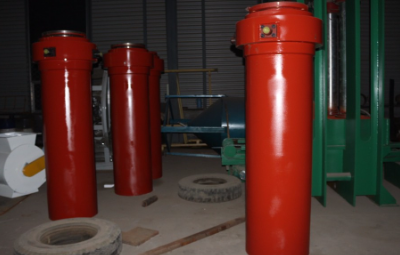

WUXI brand cylinder, durable and high quality.
Can be heated by steam boiler, oil heater or electric oil heater.
Options hot press
General pressure |
500 tons |
Board feeding direction |
From the long side |
Pressure |
0-25 MPa |
Hot press plate size |
2700*1370*40мм double inlet and outlet |
C Bore and stroke |
Φ360x2, 1050mm |
Frame |
Bolted connection |
Layer quantity |
15 layer |
Layer space |
70 mm |
Number of hot pressed plate |
16 |
general power |
20.5 kW |
oil cylinder |
origin in wuxi |
Power |
380v 20.5kW 50hertz |
top/bottom/middle beam |
900mm/900mm/400mm |
frame thickness |
Main body: 35mm, Q235 |

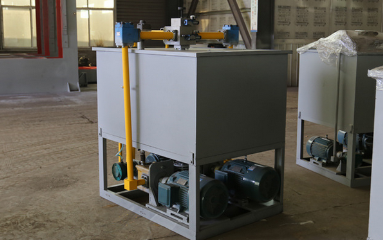

Hydraulic system |
Automatic hydraulic |
Weight |
32 tons |
Certification
Our Factory
Our services
Pre-sales services:
1. Free consultation on the entire line of plywood production equipment
2.Offer reasonable plan and free design according to customers' special requirements to help choose equipment.
3.Welcome to our factory
Services during sales:
1. Inspection of the machine before leaving the factory.
2.Installation and configuration of equipment abroad
3. Training of first line operators.
After-sales services:
1. Online service 24 hours a day
2.Providing a video with the installation and configuration of equipment
3. Providing technical support (Technical phone: +8619653165764). Service of departure to the client is possible.
