Debarker for peeling and processing wood for the production of plywood

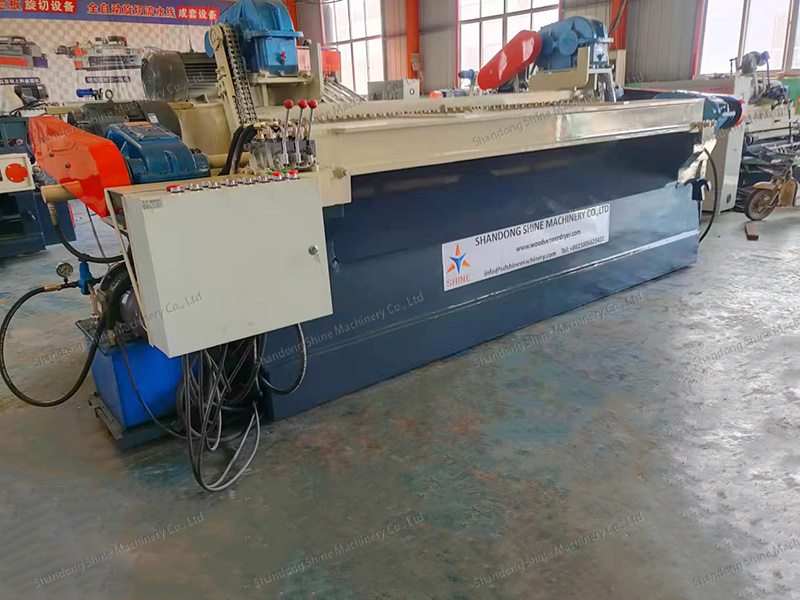

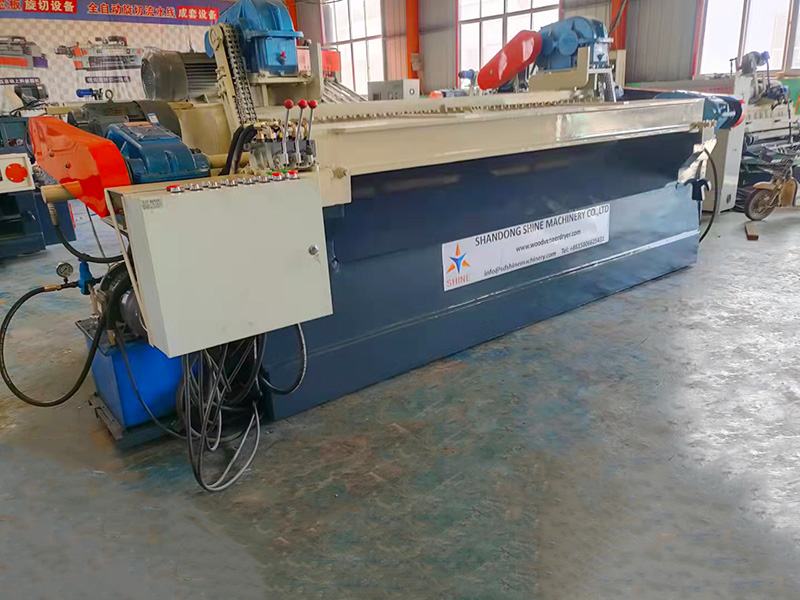

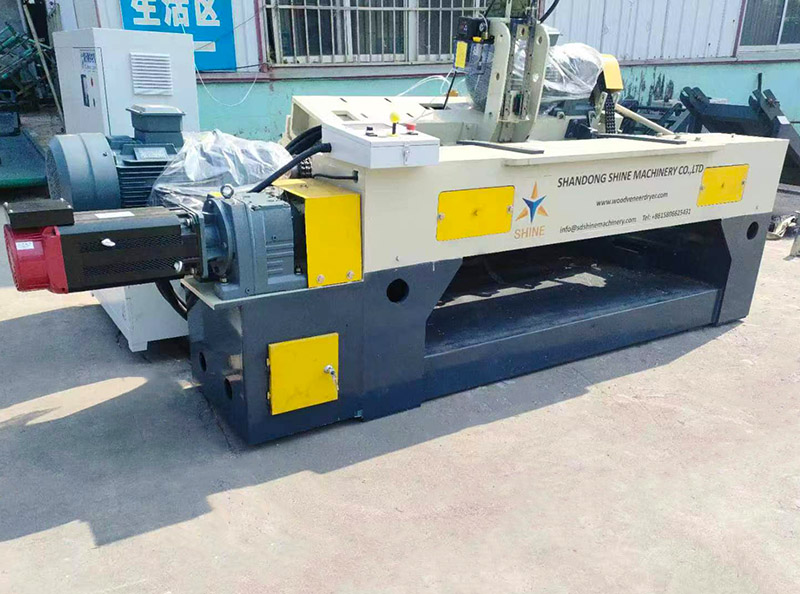

Log debarker
The wood debarker is one of the main equipment for plywood production. The introduction of a hydraulic deburring machine not only improves the efficiency of log handling, but also requires an operator. It has the advantages of reducing time and improving efficiency.

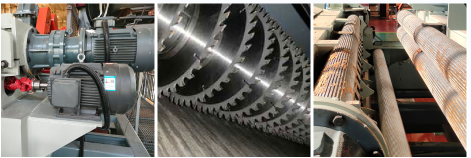

Engine
Can increase the motor for chopping: it has the function of chopping a whole piece of wood into wood chips.
Rollers
The surface of the roller is chrome-plated, which increases its wear resistance.
Increasing the roller diameter and increasing the workload.
support roller
Increase wood support mechanism for efficient handling of curved wood.
Name |
Ed. |
Parameter |
Round log length |
mm |
130 0-2600 |
Round log diameter |
mm |
Max.600mm- wooden core 80mm |
Round log thickness range |
mm |
1 .0 -4.0 |
Main machine line speed |
m/min |
60 |
Main and auxiliary motor power |
kW |
Single roller host 11X2 Double roller motor 11X2 Oil pump motor power 5.5 |
Gear model |
unit |
350 reducer |
double roller
|
mm |
180mm Mace single roll 150 large twill |
Dimensional |
mm |
5800-2200-1300 |
Weight |
kg |
7 000 |
Certification
Our Factory
Our services
Pre-sales services:
1. Free consultation on the entire line of plywood production equipment
2.Offer reasonable plan and free design according to customers' special requirements to help choose equipment.
3.Welcome to our factory
Services during sales:
1. Inspection of the machine before leaving the factory.
2.Installation and configuration of equipment abroad
3. Training of first line operators.
After-sales services:
1. Online service 24 hours a day
2.Providing a video with the installation and configuration of equipment
3. Providing technical support (Technical phone: +8619653165764). Service of departure to the client is possible.
