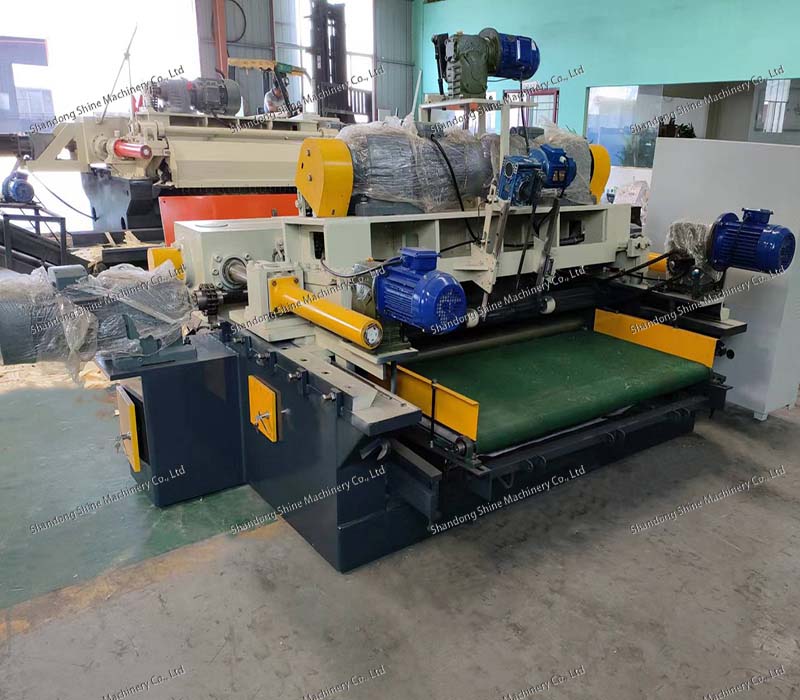

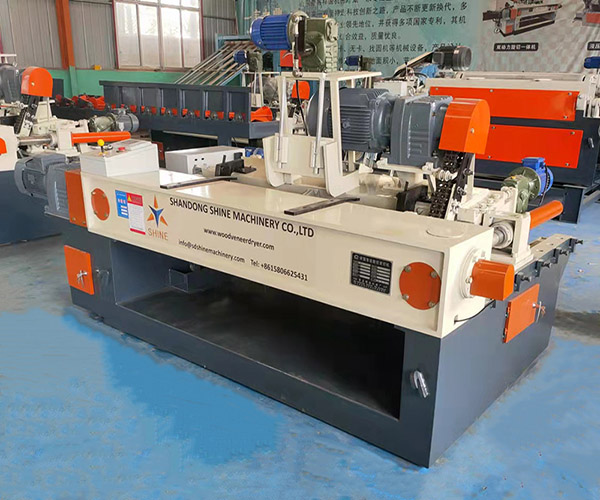

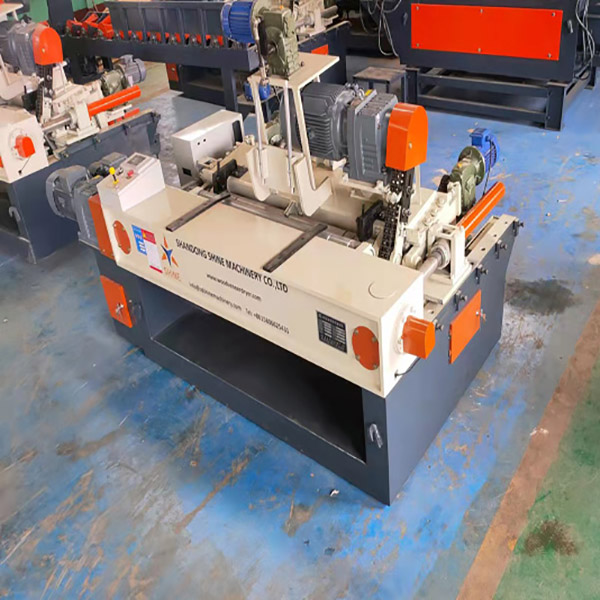

4ft Veneer Peeling and Cutting Machine
The veneer peeler is the main equipment of the plywood production line, the size of the material is suitable for both softwood and hardwood. The cardan shaft with a large diameter screw clamp allows you to clamp both massive and thin timber; hydraulic drive (servo motor) drives the hydraulic door clamping the wide sword door, which ensures convenient operation.
Slicer for fast veneer production
Shelling The rapid veneer making machine adopts servo motor for feeding, PLC and touch screen for control. In the rotary cutting process, the thickness of the plate can be easily changed. The device is equipped with a cutting head and a pressure frame, which improves the quality of the cut sheet. After setting the rotary cutting angle, a helical wheel and a heating element drive are used. The main drive of the machine is equipped with a frequency motor, which ensures stable speed and large transmission torque. The main parts of the fastening device and the pressing frame are made of injection molded materials, which ensures good rigidity, stable size and high manufacturing precision, and guarantees the accuracy of the veneer.
Advantages
Adopts high-performance numerical control components such as inverter, PLC programmer, advanced and reliable system to ensure veneer output with high efficiency and uniformity.
Single and double roller boxes use steel plate, the frame of the machine is made of double channel welding profile, which ensures stability and reliability.
The feeding system uses a nut and a lead screw, the nut is made of magnesium alloy, which makes it more durable.
The rear feed shaft is through a gearbox, which reduces the possibility of failures, noise and ensures high efficiency.
Suitable for the production of softwood and hardwood veneers.
Easy to manage, no special user experience required.
Options
Designation |
Unit |
Parameter |
Power of the main and auxiliary engine |
kW |
Double shaft motor 11 kW Single joint motor 11 kW Feed motor 7.5 kW Cutting motor 1.5 kW Rubber roller transport motor 1.5 kW |
Maximum log length |
mm |
970-1270 |
Maximum log diameter |
mm |
Max. 500mm- Wood core 32mm |
Veneer output speed |
m/min |
48 |
Veneer thickness |
mm |
0.6-3.0 |
Dimensions |
mm |
3600-2100-1600 |
Total weight |
kg |
3800 |
Certification

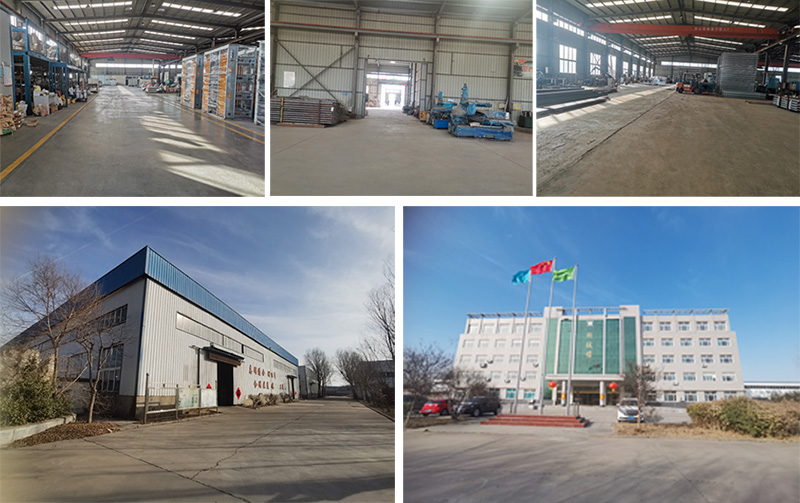

Zavod Shine
Our services
Pre-sales services:
1. Free consultation on the entire line of plywood production equipment
2.Offer reasonable plan and free design according to customers' special requirements to help choose equipment.
3.Welcome to our factory
Services during sales:
1. Inspection of the machine before leaving the factory.
2.Installation and configuration of equipment abroad
3. Training of first line operators.
After-sales services:
1. Online service 24 hours a day
2.Providing a video with the installation and configuration of equipment
3. Providing technical support (Technical phone: +8619653165764). Service of departure to the client is possible.
