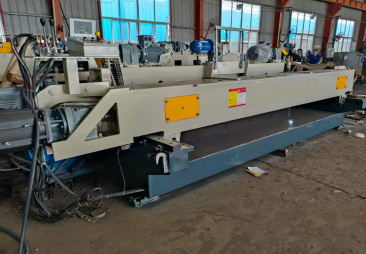

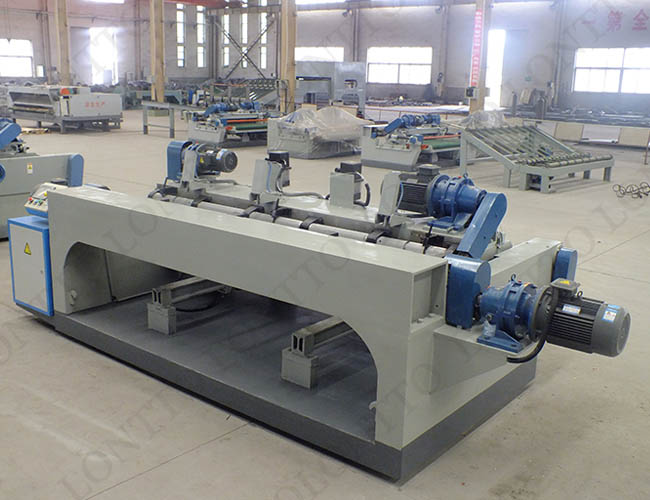

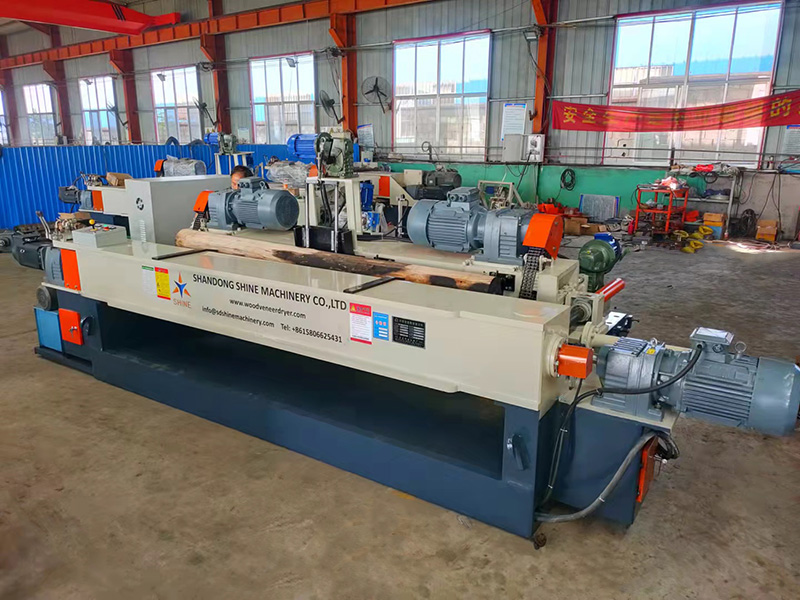

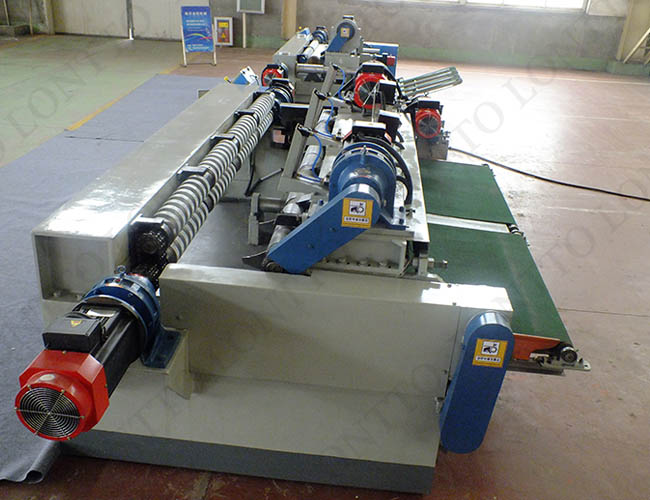

8ft Veneer Peeling and Cutting Machine
The veneer production speed of high speed veneer peeling machine in China can reach 100m/min. This saves energy by 30-50%, since the current consumed is usually only 50% of the rated current. The quality of the veneer is high, the surface is smooth and even, the thickness meets the standard plus or minus 0.05 mm. The stable speed of rotation of the rolls reduces the effect of voltage fluctuations.
Type: 8ft Veneer Peeler.
Veneer thickness (mm): 0.6-2.6.
Veneer production speed (m/min): 30-70 (adjustable speed).
Maximum log length (mm): 2600.
Maximum log diameter (mm): 500mm max. - wooden core 32 mm.
8 feet lathe
Woodworking Equipment SHINE 8Ft spindleless veneer machine is the most common model of veneer machine in woodworking industry. Usually the veneer machine is used together with the veneer dryer. The working efficiency will be greatly improved by Shine's veneer production line and drying line. The veneer machine is suitable for eucalyptus, pine, cotton and other woods. The quality of the veneer determines the quality of the plywood, so quality control of the veneer is a prerequisite and the most important part of the production of standard plywood. The veneer machine is a very technical equipment in the plywood production line equipment.
Automatic speed deceleration at the end of the veneer production process, reduce the vibration of the machine, make the bearings and the machine more durable. Advanced control system and core technology. Integrated clipper model, veneer production and trimming at the same time.
Key Features of 8ft Veneer Making Machine:
The fastest veneer production rate in China. The production speed can reach 100 m/minute (when ordering - up to 120 m/minute).
Save energy by 30% - 50%. Normally, the operating current is only 50% of the rated current.
Good veneer quality, smoothness and uniformity, thickness error plus or minus 0.05 mm.
Roller rotation speed stability, reducing the influence of voltage fluctuation.
Automatic deceleration at the end of the veneer production process, reduce machine vibration, improve bearing and machine durability.
Advanced control system and core technology.
Integrated model for trimming and veneer production at the same time.
Options
| Designation | Unit | Parameter |
| Power of the main and auxiliary engine | kW | Double roller main motor electric 7.5KW*2 Host one roller motor 7.5KW*2 Feed motor Servo motor 11 kW Hob motor 4kw servo drive 2.2kw rubber roller transmission motor |
| Maximum log length | mm | 2600 |
| Maximum log diameter | mm | Max. 500 mm - wood core 32 mm |
| Veneer output speed | m/min | 30-70 |
| Veneer thickness | mm | 0.6-2.6 |
| Dimensions | mm |
(L)6200*(W)2000*(H)1600 |
| Total weight | kg | 10000 |
Certification

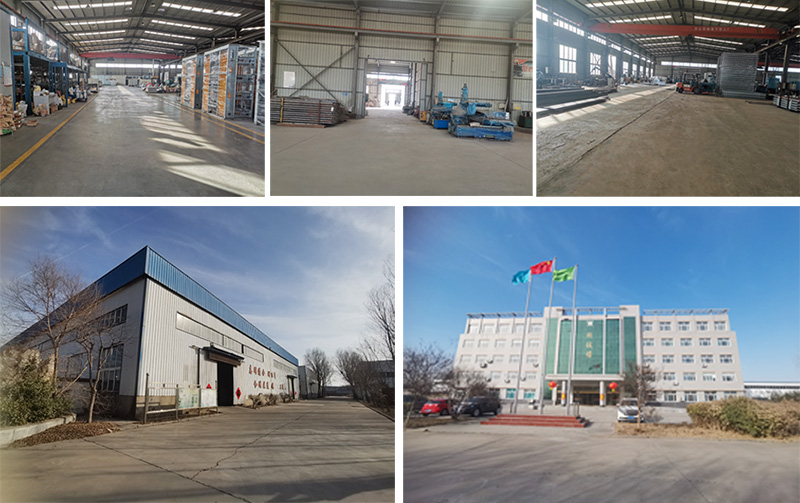

Shine Institute
Our services
Pre-sales services:
1. Free consultation on the entire line of plywood production equipment
2.Offer reasonable plan and free design according to customers' special requirements to help choose equipment.
3.Welcome to our factory
Services during sales:
1. Inspection of the machine before leaving the factory.
2.Installation and configuration of equipment abroad
3. Training of first line operators.
After-sales services:
1. Online service 24 hours a day
2.Providing a video with the installation and configuration of equipment
3. Providing technical support (Technical phone: +8619653165764). Service of departure to the client is possible.
