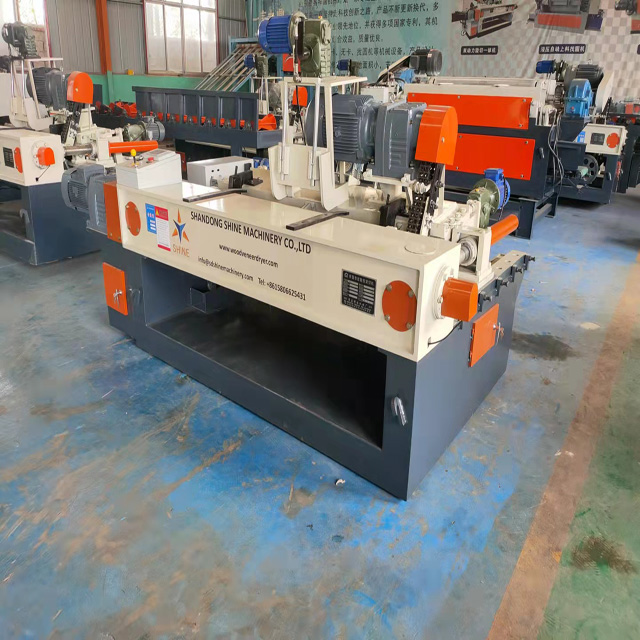

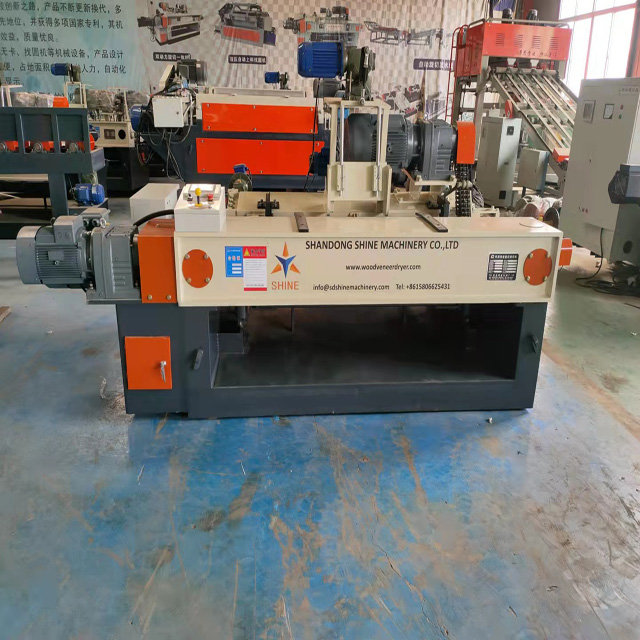

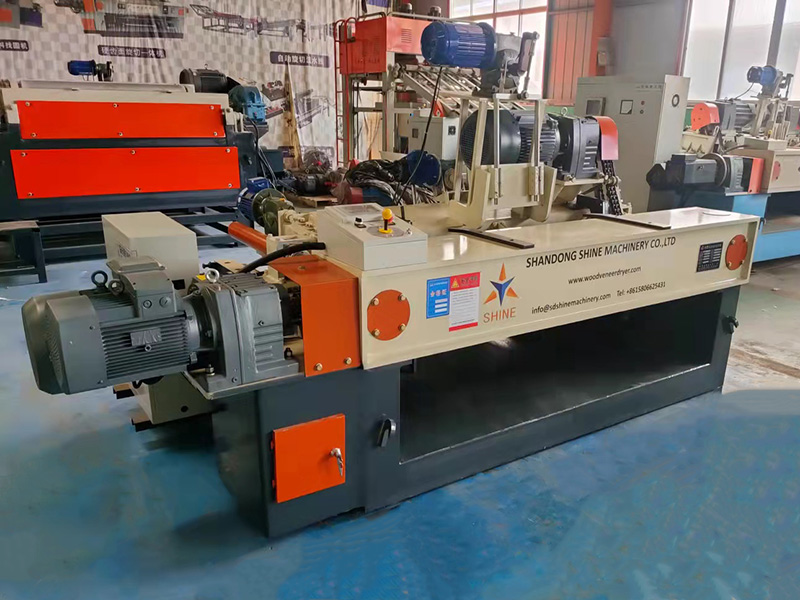

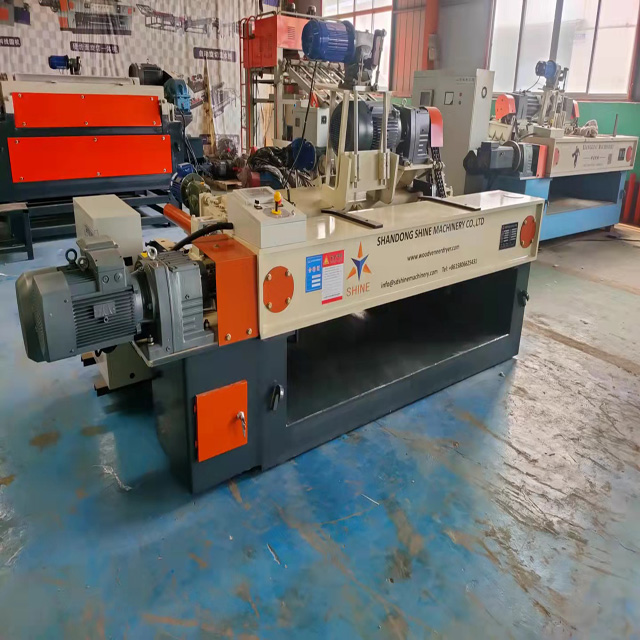

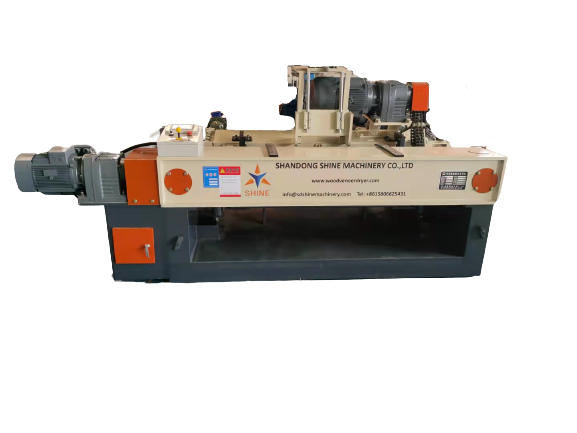

Peeling machine without spindle
The 4ft veneer peeler has digital control system, high strength and wear resistance, stable rear axle rotation system, and automatic cutting tool joint adjustment system. Its stable design can be suitable for wood, eucalyptus, maple, pine.
Type: 4ft Veneer Peeler
Veneer thickness (mm): 0.5-3.0
Veneer production speed (m/min): 30-120 (adjustable speed)
Maximum log length (mm): 1500
Maximum log diameter (mm): 500-600
4 foot shelling veneer machine
The spindleless peeler is a very technical equipment in the plywood production line. The veneer peeling machine can be used together with the veneer roller dryer. It is one of the main machines for plywood production and can be used for rotary cutting of round wood with a diameter of less than 500mm with a high degree of wood utilization. Suitable for the production of high-end plywood and other woodworking industries.
Integrated design enhances space utilization, reduces the number of workers. The automatic adjustment of the cutting system makes the skin smoother and more uniform. Large veneer diameter. This Wood 4 feet veneer peeling machine with round parts auxiliary device can save the entire standard back plate.
Main Features of 4ft Veneer Peeler:
This machine uses a pneumatic pressing device, which is simple and reliable, and has good dynamic performance.
The single and double rollers are driven through helical gears, which ensures stable transmission, good speed rigidity and long service life.
The body of the machine, the places of the single and double rollers are reinforced, so that the overall rigidity is enhanced.
The CNC system of the whole machine adopts high quality Siemens PLC, which has fast running speed and high reliability.
Options :
Designation |
Unit |
Options |
Single roller motor power |
kW |
7.5*2 servo motor |
Double roller motor power |
kW |
7.5*2 servo motor |
Auger motor power |
kW |
7.5 servomotor |
Clipper motor power |
kW |
2.2 servomotor |
rubber roller motor power |
kW |
2.2 servomotor |
general power |
kW |
41.9 |
Single roller gearbox |
K77 |
|
double roller reducer |
R87 |
|
Screw reducer |
R87 |
|
Clipper Reducer |
RV90 |
|
Rubber Roller Reducer |
RV90 |
|
Peeling knife size |
mm |
(l)1500*(w)180*(t)16 |
Max log length |
mm |
1500 |
Max. log diameter |
mm |
500-600 |
Min. Last core diameter |
mm |
28 |
Veneer output speed |
m/min |
30-120(adjustable speed) |
Veneer thickness |
mm |
0.5-3.0 |
Dimensions |
mm |
(d)4600*(w)1950*(h)1800 |
Weight |
kg |
7000 |

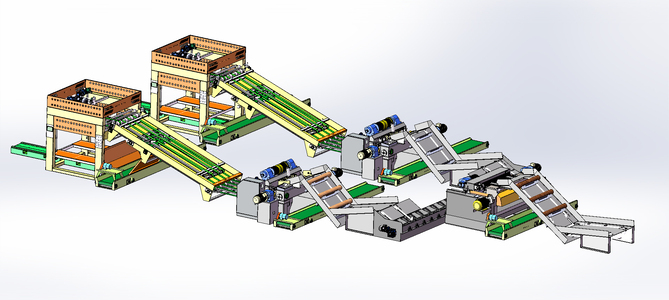

Scheme of a peeling machine
Certification

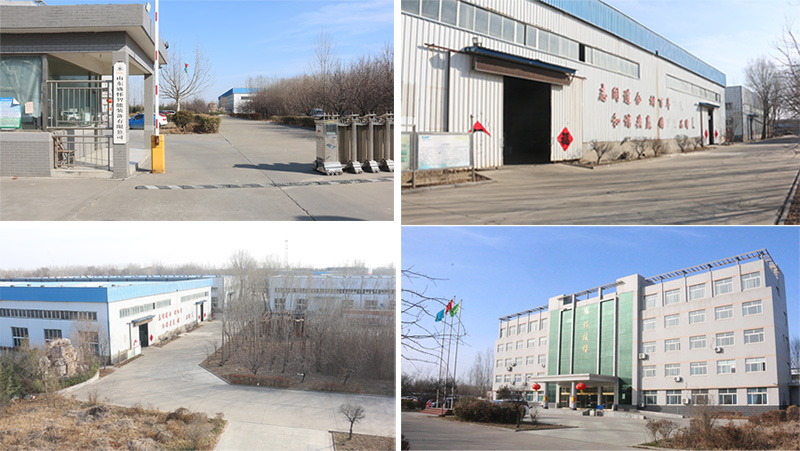

Zavod Shine
Our services
Pre-sales services:
1. Free consultation on the entire line of plywood production equipment
2.Offer reasonable plan and free design according to customers' special requirements to help choose equipment.
3.Welcome to our factory
Services during sales:
1. Inspection of the machine before leaving the factory.
2.Installation and configuration of equipment abroad
3. Training of first line operators.
After-sales services:
1. Online service 24 hours a day
2.Providing a video with the installation and configuration of equipment
3. Providing technical support (Technical phone: +8619653165764). Service of departure to the client is possible.
