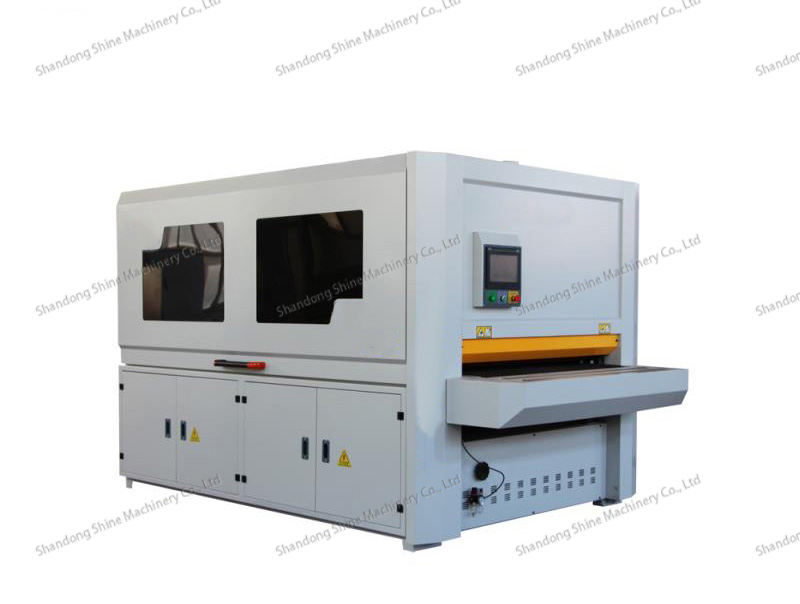

Automatic grinder

Automatic grinder

This grinder is essential for artificial wood boards, multilayer boards, veneer, etc. The plywood sander adopts modular design. They can be combined at will and meet different customer requirements. Contact roller adopts weighted steel. Its polishing volume is large and high plane. Speed ​​regulation through large power, resulting in high efficiency.

  Contact Now E-Mail Telephone WhatsApp
Product Details

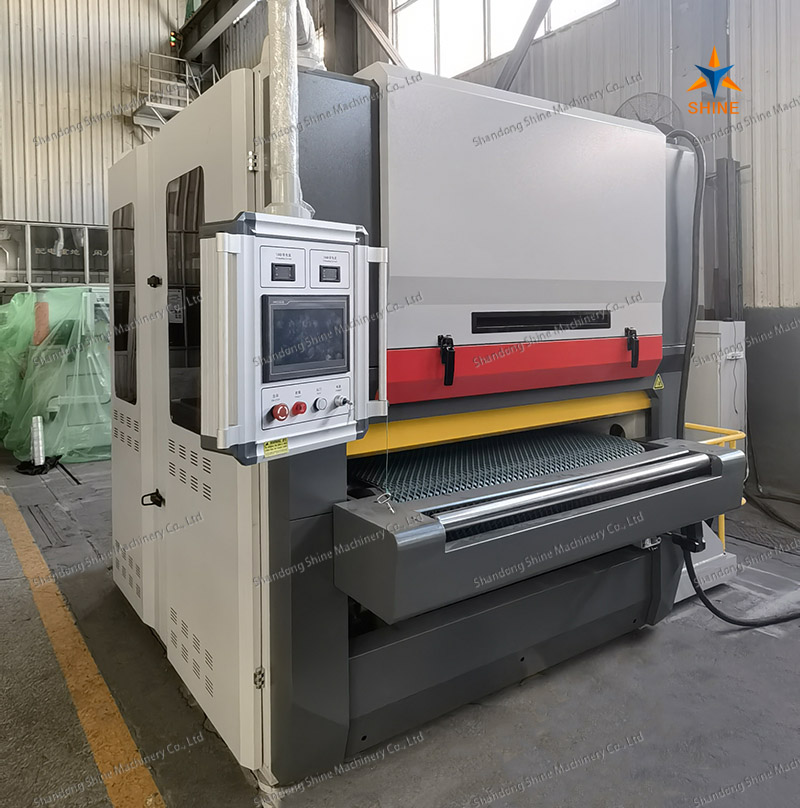

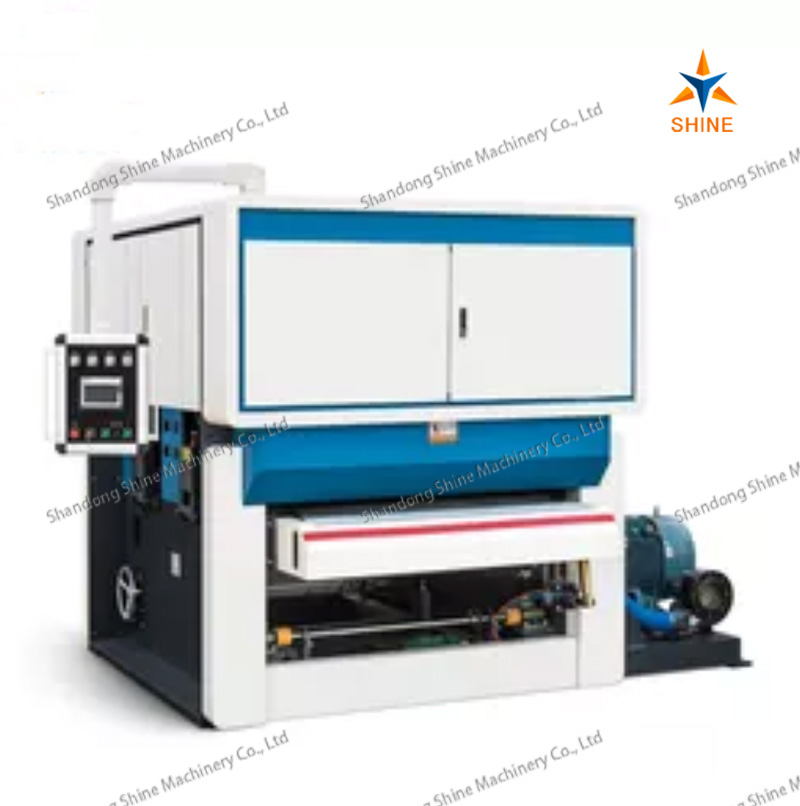

Grinding machines

Sanding machine is the last step of plywood production, in order to make the thickness of plywood more accurate and balanced, the surface is more smooth and bright, we have different types, such as there are 1 head, 2 heads, 3 heads, single-sided, double-sided, light and heavy , some want to calibrate the thickness very accurately, some want to keep the surface very smooth, so we will suggest the most suitable grinder for you.

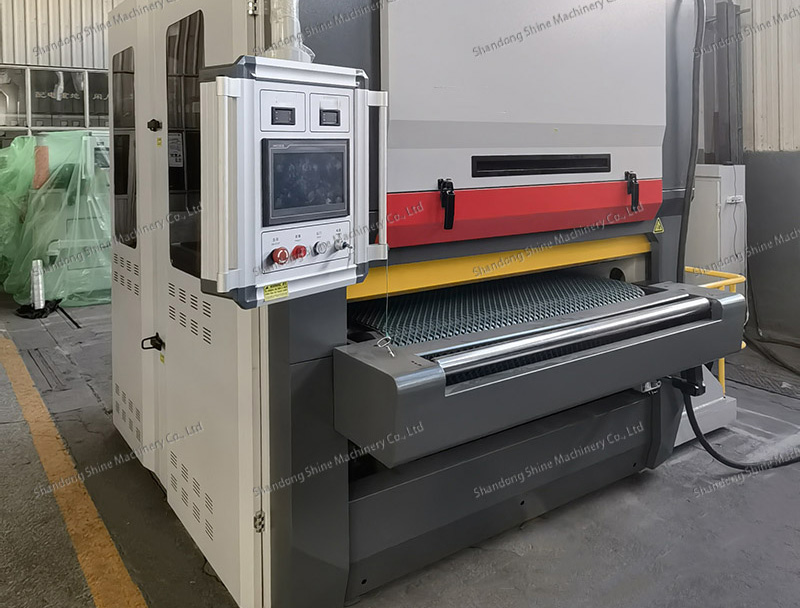

Клеенаносящий станок


The main features of the grinding machine:

The microcomputer front control panel can be operated conveniently and quickly.

The feed rate is controlled by frequency converter, which allows flexible and convenient operation.

The frame has high strength, high weight and good stability.

Maintenance is convenient, security is excellent, and the failure rate is low.

The sanding block adopts cast structure with little deformation and excellent damping performance.


Grinding Machine Parameters:

Processing thickness

2.5~80mm

Grinding width

40~1300mm

Linear speed of the sanding belt

18m/s

Feed rate

0~100m/min

general power

51.25 kW

Main engine power

30kW+18.5kW

Conveyor motor power

5.5 kW

Wind speed of dust settling system

25-30 m/s

 Weight

5 tons

Dimensions

2050*2600*2100mm


Shine Institute

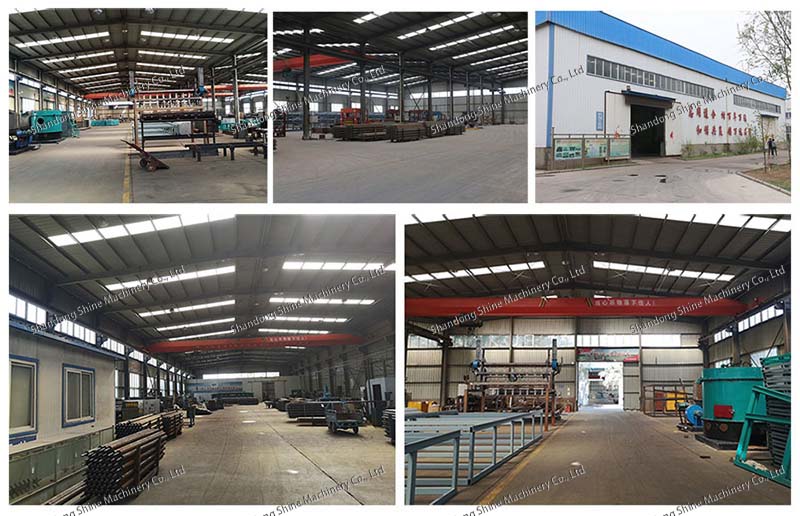

Завод Shine


Certification

Сертификация


Sending

Отправка


Customer visits and exhibition

1687312525291197.jpgПосещения клиентов и выставка

Our services


Pre-sales services:

1. Free consultation on the entire line of plywood production equipment

2.Offer reasonable plan and free design according to customers' special requirements to help choose equipment.


3.Welcome to our factory

Services during sales:

1. Inspection of the machine before leaving the factory.

2.Installation and configuration of equipment abroad

3. Training of first line operators.


After-sales services:

1. Online service 24 hours a day

2.Providing a video with the installation and configuration of equipment

3. Providing technical support (Technical phone: ++8615806625431). Service of departure to the client is possible.
