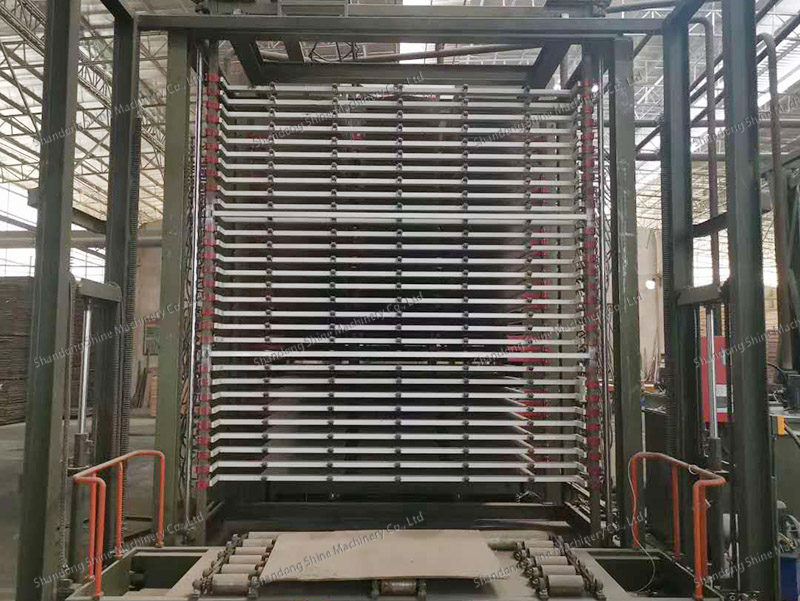

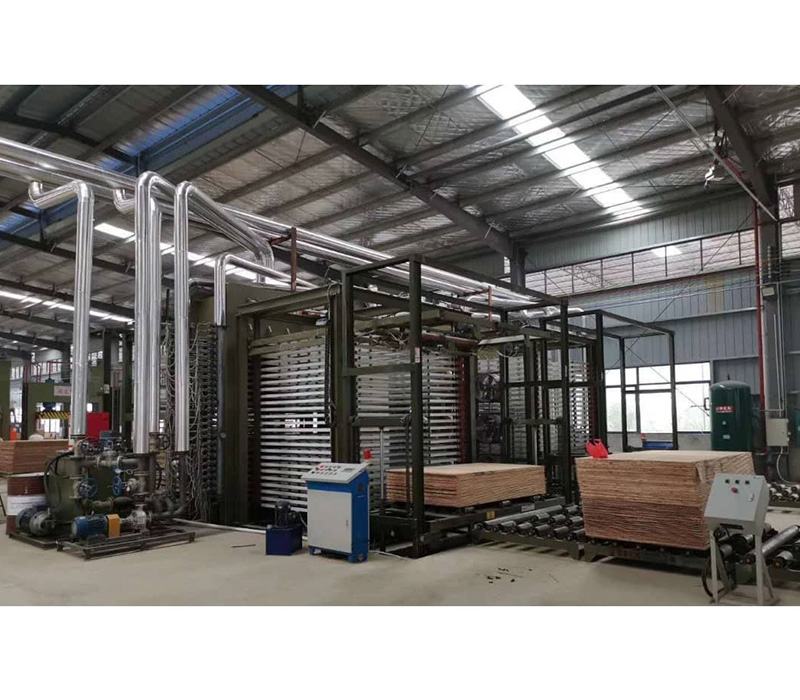

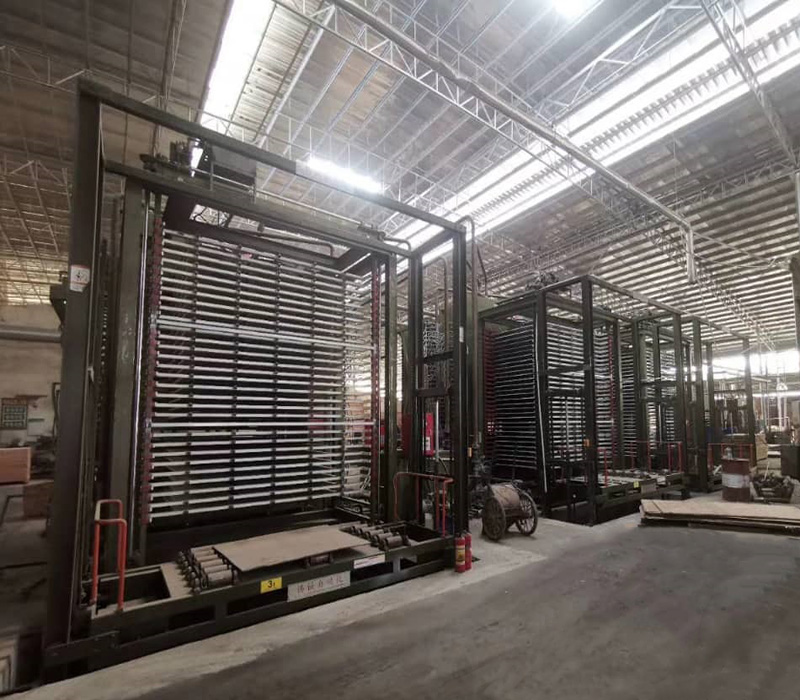

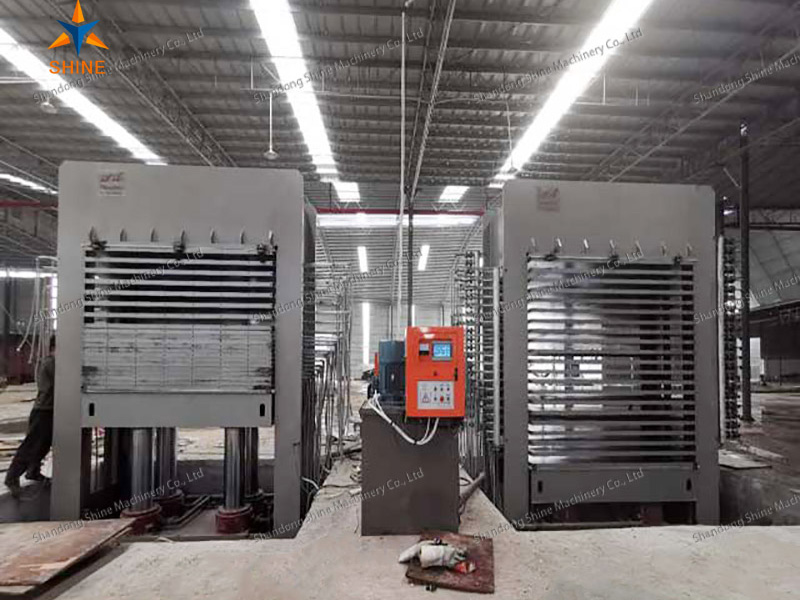

Hot press

Hydraulic hot press

This series of hydraulic presses are used for processing furniture, film plywood. You can use it to press plywood or laminate wood dowel, film paper or melamine paper onto plywood, chipboard or MDF. Our hydraulic press machine features low heat consumption, meticulous design, uniform heat conduction, high-precision machined mechanical parts, wide control process parameter setting range, reasonable design, to meet the various demands of plywood production.

Contact Now E-Mail Telephone WhatsApp

Product Details

Hot press

The hot press is one of the most important machines in plywood production. It determines the productivity and quality of the final product. Hot pressing system, heating system, heat transfer system, low energy consumption, meticulous design, uniform heat transfer, high-precision machined parts, wide control process parameter setting range, reasonable design to meet the different requirements of the plywood production process.

Advantages of hydraulic hot press

1. It can lift the hot plate, close the separation, apply pressure, maintain pressure, maintain time, lower the hot plate, etc.

2. As for the oil heater, it is adjustable, safe, uniform temperature, economical, etc.

3.Cylinder: It works through excellent CNC machine.

4.It uses high quality oil shell to avoid oil leakage.

Hot press parameters

General pressure	500 tons
Board feeding direction	From the long side
Pressure	0-25 MPa
Hot press plate size	2700137040мм double inlet and outlet
C Bore and stroke	Φ360x2, 1050mm
Frame	Bolted connection
Layer quantity	15 layer
Layer space	70 mm
Number of hot pressed plate	16
general power	20.5 kW
oil cylinder	origin in wuxi
Power	380v 20.5kW 50hertz
top/bottom/middle beam	900mm/900mm/400mm
Frame thickness	Main body: 35mm, Q235
Hydraulic system	Automatic hydraulic
Weight	32 tons
