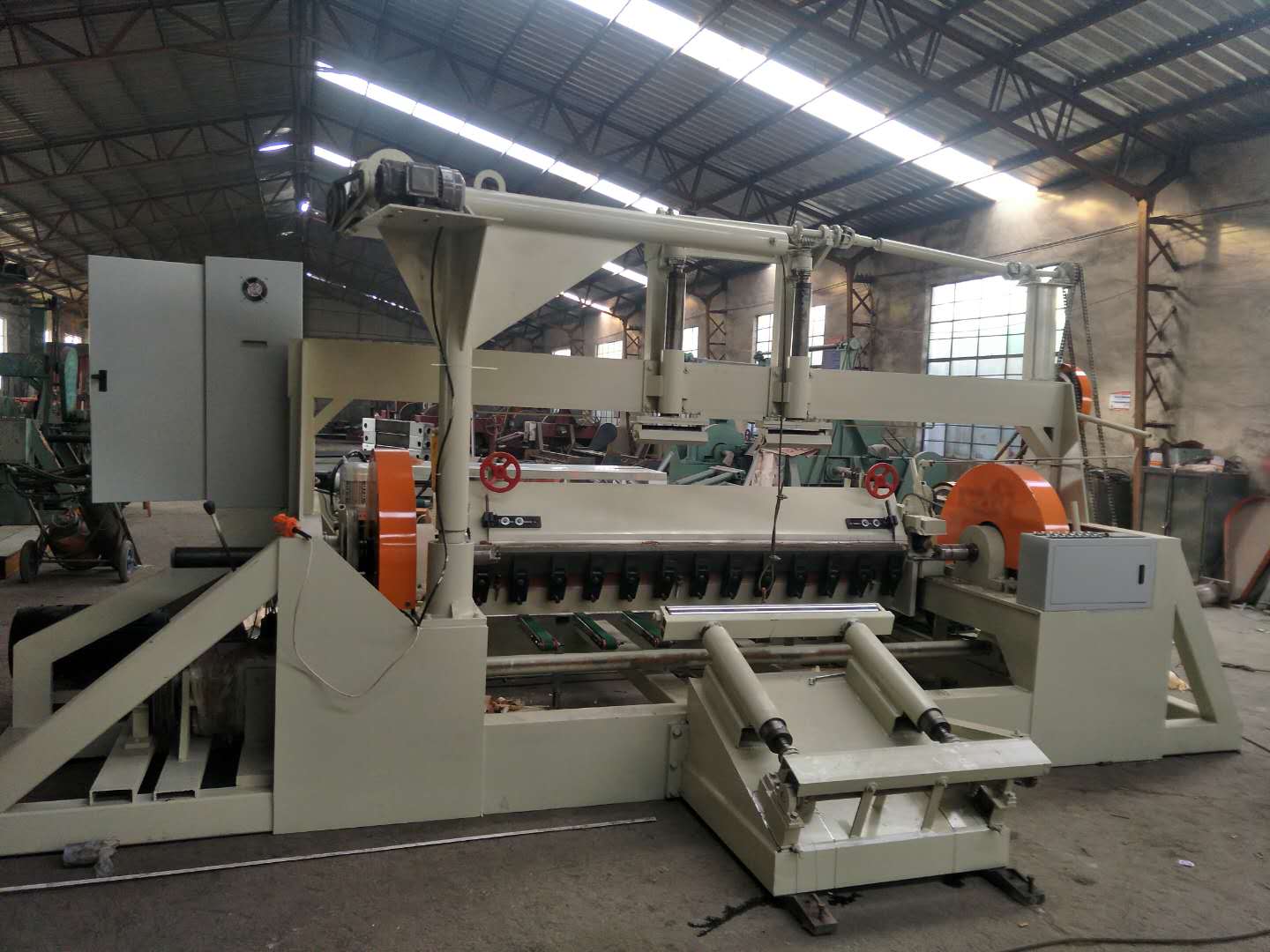

Spindle peeling machine

A hydraulic unit is used to change knives. High-quality electromagnetic guide valve and pressure stabilizing device ensure reliable and stable operation.

If you need to change the thickness of the veneer, just enter the data through the control panel. The servo system will automatically change the gap between the blades. You can change the thickness at any time according to your requirements. No specialists are required, ease of use is ensured.

  Contact Now E-Mail Telephone WhatsApp
Product Details

Plywood production is a very complex but profitable business. To open a plywood production enterprise, you must first of all purchase the equipment that is used for this process. It is worth remembering that high-quality equipment can significantly simplify the plywood production process.

Before raw materials enter the machines, they are carefully selected. After pre-treatment, the bark is removed from the wood, and then it is examined for the presence of metal objects such as nails, wire and others. And only after this the finished raw materials enter the machines.

First, a layer of veneer of a given thickness is removed on a peeling machine. The thinner it is, the more layers there will be in the plywood, the stronger the resulting plywood will be. The thinnest veneer is obtained from birch. Peeling machines are specially adjusted based on sample inspections to evaluate the quality and thickness of the veneer. After this, the veneer is divided into equal sheets, which are then sent to the dryer, where about 90% of the moisture evaporates from it. After going through the drying procedure, the veneer is sorted according to a number of parameters, such as the presence of knots and cracks, sheet moisture and others.


Areas of use:

Spindle peeling machine is widely used in the woodworking industry to produce various plywood products and products. They are especially popular in furniture manufacturing, packaging, building materials and other industries that require the use of plywood.


Options

Designation

Unit

Parameter

Main and auxiliary engine power

kW

Main motor for double roller 22kWX1

fixing motor 4 kWX2

forward and reverse motor 1.5 kWX1

clipper motor 1.1 kWX1

hydraulic station motor 0.75 kW X1

Log press motor 1.1KW X 1

Log feed motor 1.1 kW X1



Maximum log length

mm

2000-2600

Maximum log diameter

mm

900

Veneer thickness

mm

0.2-2.6mm

Dimensions

mm

(L)6000*(W)3000*(H)2600

Total weight

kg

8000

general power

kW

35,55



Our services


Pre-sales services:

1.Free consultation on the entire line of equipment for plywood production

2.Offer reasonable plan and free design according to customers' special requirements to help select equipment.

3.Welcome to our factory


Services during sales:

1. Inspect the machine before leaving the factory.

2.Installation and configuration of equipment abroad

3.Training of first line operators.


After-sales services:

1.Online service 24 hours a day

2.Providing videos with installation and configuration of equipment

3.Providing technical support (Technical phone:  +8619653165764). A visit to the client service is available.
