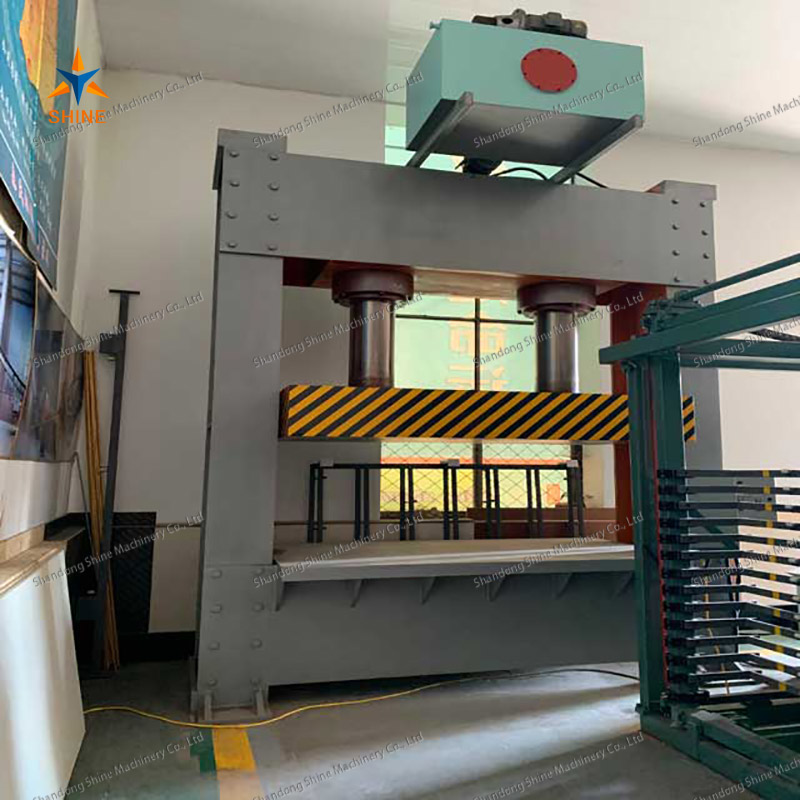

Cold presser

Cold pressing is an essential equipment for plywood production. It is used to shorten the hot pressing cycle, improve the quality of the plywood board before gluing, and can also be customized for different types of pressing.
  Contact Now E-Mail Telephone WhatsApp
Product Details

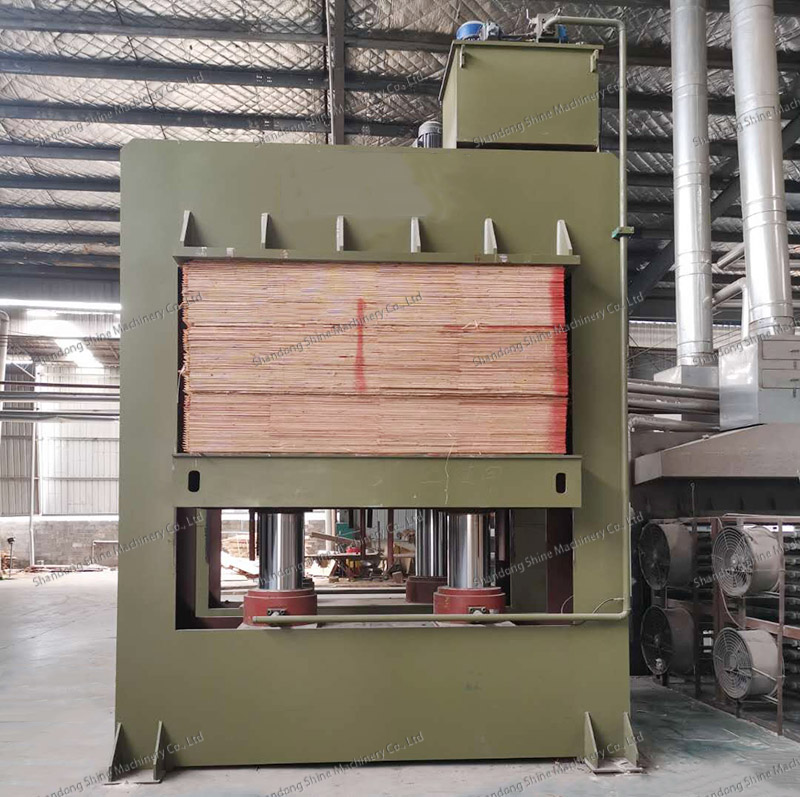

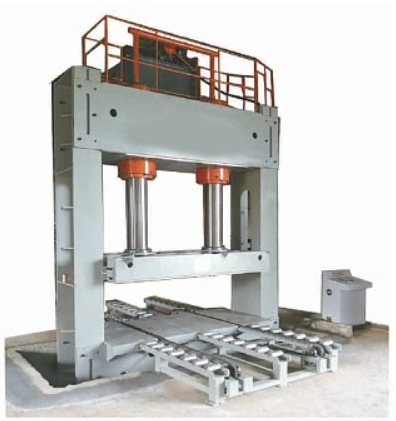

Cold pressing machine (stop compression)

  1. Hydraulic plywood cold pressing machine, used for single plywood machines.

  2. Cold press is an essential equipment for plywood production.

  3. It can press with a force of 400 tons, 500 tons and 600 tons.

  4. The main use of a cold press for plywood is pre-pressing to compress the material.

  5. These plywood cold pressing machines are widely used in the plywood and furniture making industries for gluing plywood to plywood, doors, boards or boards.

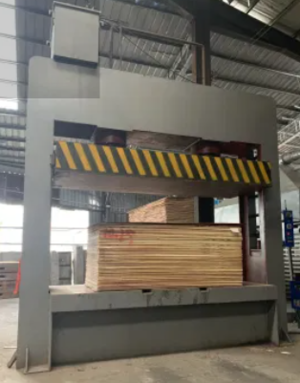

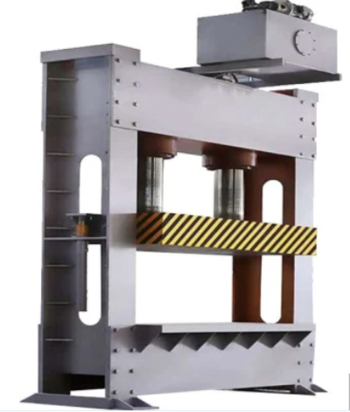

Холодный пресс для шпонаХолодный подпрессовщик

Specifications
Pressure (t) 500
Working size (mm) 1700x1650
Slab opening (mm) 300-1300
Maximum cylinder stroke (mm) 1000
Cylinder diameter (mm) 360
Number of hydraulic cylinders (pcs)
Slab thickness (mm) 30
Power, kWt) 17,2
Overall dimensions, mm) 3500x2400x4300
