Veneer dryer 2-storey 56m

Roller dryer GTH30-56-2 (2-story) is designed for drying plywood veneer.

The coolant in veneer dryers is hot air (thermal oil or steam).

Productivity: from 3.5-4.0 m3/hour.

Drying temperature: 130-190 ºС.

Veneer thickness: 0.8–8 mm.

Final moisture content of veneer: 10 ± 2%.

We can also produce products according to individual customer orders (especially for cold regions). Welcome to contact us for a consultation.

Mobile/Whatsapp:+8619653165764

Mail:iliya@sdshinemachinery.com


  Contact Now E-Mail Telephone WhatsApp
Product Details

Specifications

Model No.

GTH30-56-2

Working width

3000mm

Number of floors

2

Roller material

Q235B, φ89 steel pipe

Heating zones

52m

Cooling zone

4m

Veneer thickness

0.8-8mm

Final humidity

Fresh key up to about 10%

Heating material and drying temperature

Waste wood, adjustable from 130 to 190℃. There is an automatic temperature control and speed adjustment system, which can guarantee the same moisture content.

Drying capacity (m³/h)

3.5-4.0 cubic meter

Feed rate

5-22m/min,16A circuit

Hot air fan power

5.5kW(13pcs)

Conveyor power

7.5kW,frequency regulation(2pcs)

Cooling fan power

5.5kW(1pcs)

Exhaust fan power

11kW(2pcs)

Power of 6 ton boiler

16.5kW

Total power

138.5kW

Actual electricity consumption

Approximately 90 kW per hour

Coverage area approx.

62 X 9 X 2.95m

Electrical components

Chinese brand or Schneide

PLC

Chinese brand or Mitsubishi

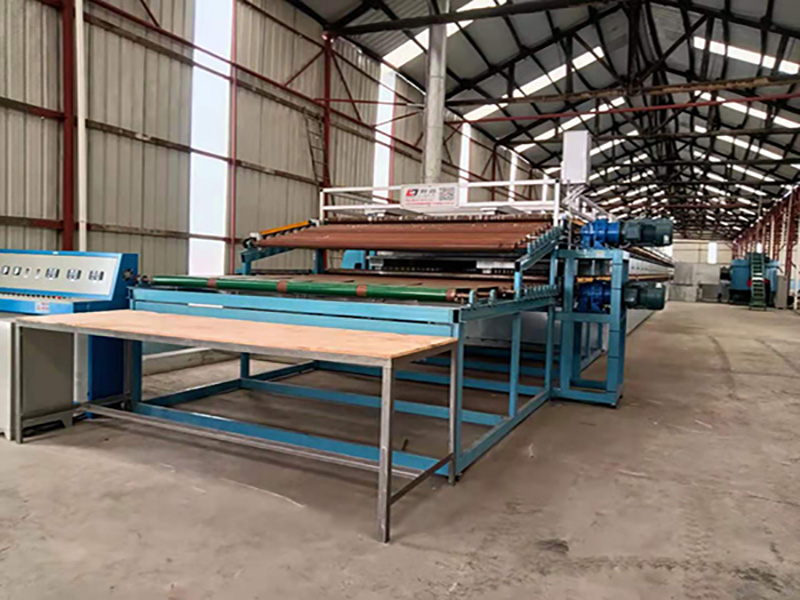

Veneer dryer 2storey

Who are we?

"ShandongShineMachinery", located in Shandong Province, China, has been specializing in the production of veneer dryers for more than 20 years and holds the position of vice president of Shandong Wood Processing Association. Our customers cover more than 40 countries and regions around the world, and our technology has been recognized both domestically domestically and abroad. We regularly participate in professional exhibitions both in China and abroad, and also have representatives in several countries. We invite customers from all over the world to visit our factory.

factory

at the exhibition

package
