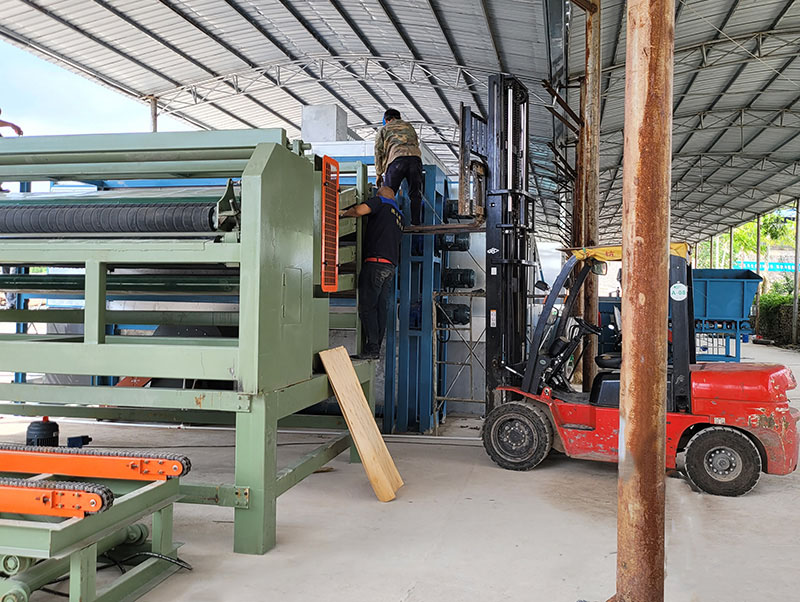

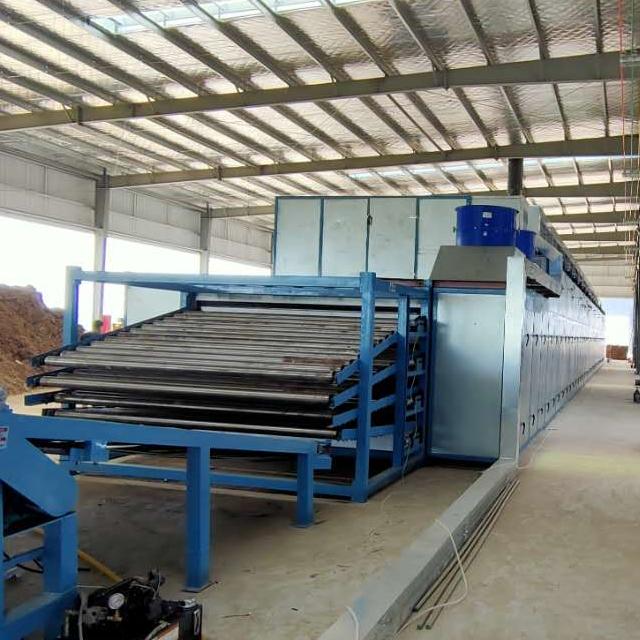

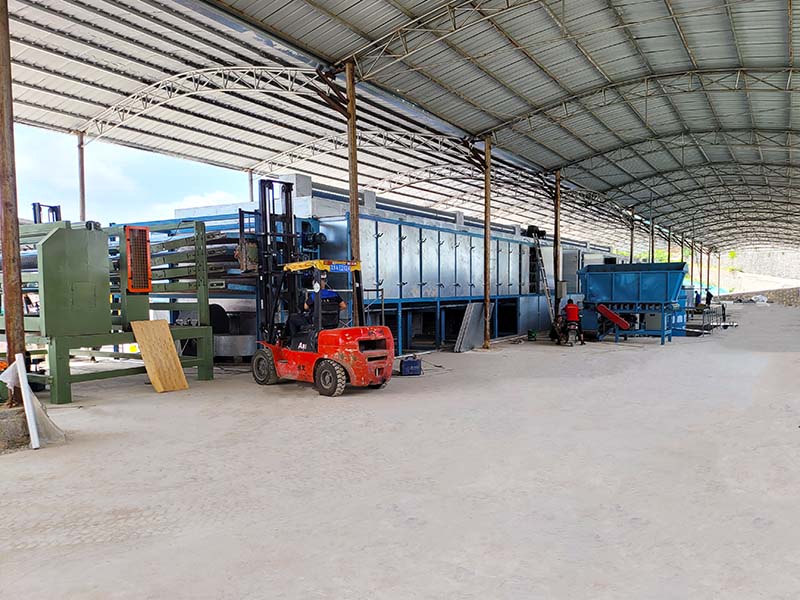

Roller dryer for veneer, 4-story, 38 meters long GTH30-38-4

The roller dryer GTH30-38-4 is designed for drying plywood veneer.

The coolant in veneer dryers is hot air (thermal oil or steam).

Number of floors: 4.

Productivity: from 5–5.5 m3/hour.

Drying temperature: 130-190 ºС.

Veneer thickness: 0.8–8 mm.

Final moisture content of veneer: 10 ± 2%.

We can also produce products according to individual customer orders (especially for cold regions). Welcome to contact us for a consultation.

Mobile/Whatsapp:+8619653165764

Mail:iliya@sdshinemachinery.com

Contact Now E-Mail Telephone WhatsApp

Product Details

Purpose

Rollerveneer dryerdesigned for drying veneer with a thickness of 0.8 to 8 mm.

Application area

This equipment is used in wood processing plants and plywood factories of all capacities that produce veneer and plywood.

The veneer passes through the machines longitudinally and is compressed by upper and lower drive rollers. Streams of hot air from boxes with nozzle blast are directed onto the veneer from above and below. The built-in boiler in the dryer burns sawdust (biomass), and the resulting heat is transferred to the dryer through a heat exchanger.

Specifications

Model No.	GTH30-38-4
Working width	3000mm
Number of floors	4
Roller material	Q235B, φ102 steel pipe
Heating zones	34m
Cooling zone	4m
Veneer thickness	0.8-8mm
Final humidity	Fresh key up to about 10%
Heating material and drying temperature	Waste wood, adjustable from 130 to 190℃. There is an automatic temperature control and speed adjustment system, which can guarantee the same moisture content.
Drying capacity (m³/h)	5-5.5 cubic meter
Feed rate	5-22m/min，16A circuit
Hot air fan power	4kW（34pcs）
Conveyor power	7.5kW，frequency regulation（4pcs）
Cooling fan power	4kW（4pcs）
Exhaust fan power	15kW（2pcs）
Power of a 15 ton boiler	23.2kW
general power	235.2kW
Actual electricity consumption	Approximately 153 kW per hour
Coverage area approx.	49 X 11 X 4.45m
Electrical components	Chinese brand or Schneide
PLC	Chinese brand or Mitsubishi

Roller dryer for veneer 4-storey

Commercial terms

1. Packaging and Transportation: Items will be shipped by export packages. During sea or rail transportation, as well as other modes of transport to the destination, the packaging must be able to protect the cargo from any damage and corrosion.

2. Quality Guarantee: All machines, except normal wear parts, are covered by a one-year warranty. After the warranty period expires, the seller will offer wear parts at a competitive price.

3. Payment terms: T/T with 30% as deposit and full balance paid before delivery.

4. Delivery Time: After receiving the deposit, we will start production and the product will be ready within about 30 working days. After the client checks the goods and pays the balance of 70% of the total contract value, we will deliver the goods at the time agreed by both parties.

5. Installation and commissioning

We will send videos and drawings for installation guidance. The seller can also send an engineer to the destination country to guide the installation and debugging, while our engineers are responsible for training the buyer's operators; The buyer should be responsible for our engineers' round trip airfare, visa costs, food and accommodation, and personal safety. And the buyer must supply one Chinese translator for our engineers. And the buyer must pay a salary of 100 US dollars per day to our engineer.

6. Our products are constantly updated, if there is any data discrepancy, please refer to the actual product.
