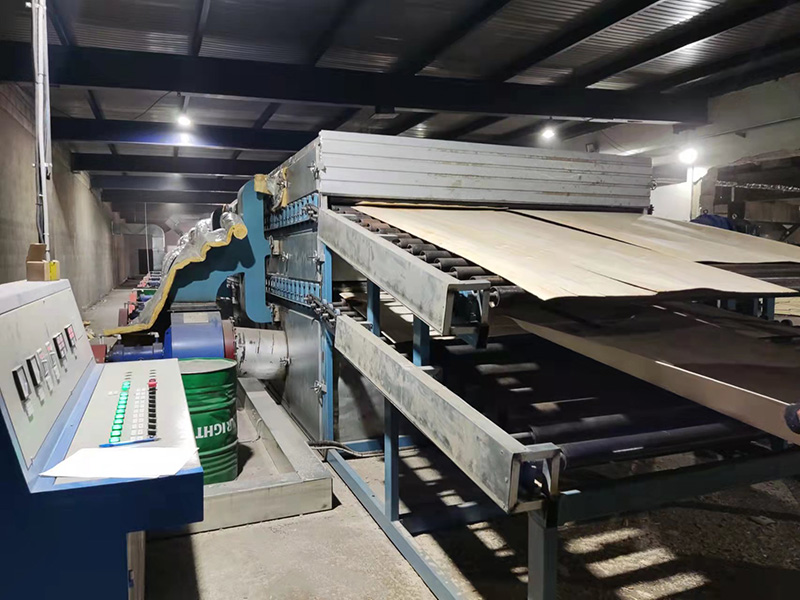

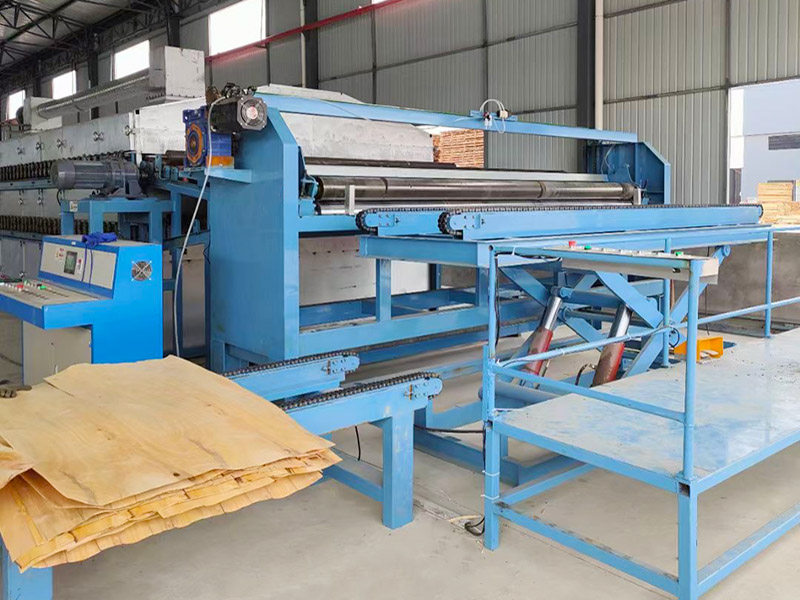

Roller dryer for drying veneer GTH375-56-2

The roller dryer SHINE GTH375-56-2 is designed for drying plywood veneer.

The coolant in veneer dryers is hot air (thermal oil or steam).

Number of floors:2.

Productivity: from 4–4.5 m3/hour.

Drying temperature: 130-190 ºС.

Veneer thickness: 0.8–8 mm.

Final moisture content of veneer: 10 ± 2%.

We can also produce products according to individual customer orders (especially for cold regions). Welcome to contact us for a consultation.

Mobile/Whatsapp:+8619653165764

Mail:iliya@sdshinemachinery.com


  Contact Now E-Mail Telephone WhatsApp
Product Details

Purpose

Rollerveneer dryerdesigned for drying veneer with a thickness of 0.8 to 8 mm.

Application area

This dryer is used in wood processing plants, in all plywood factories that produce veneer and plywood.

The veneer passes through the machines longitudinally and is compressed by upper and lower drive rollers. Streams of hot air from boxes with nozzle blast are directed onto the veneer from above and below. The built-in boiler in the dryer burns sawdust (biomass), and the resulting heat is transferred to the dryer through a heat exchanger.

Processing scheme

Processing scheme

Design features


Heat exchanger

Flue gases enter the dryer through a heat exchanger, which eliminates the appearance of soot and smoke on the veneer and inside the dryer, thereby ensuring the cleanliness of the veneer.

Heat exchanger

Boiler(biomass)

For the selected dryer configuration, a boiler with appropriate parameters is selected, which guarantees the required dryer performance. It is possible to use the heat released by burning various wood wastes with a thermal energy conversion coefficient of more than 90%.

Boiler(biomass)Boiler(biomass)

Specifications

Model No.

GTH375-56-2

Working width

3500mm

Number of floors

2

Roller material

Q235B, φ89 steel pipe

Heating zones

52m

Cooling zone

4m

Veneer thickness

0.8-8mm

Final humidity

Fresh key up to about 10%

Heating material and drying temperature

Waste wood, adjustable from 130 to 190℃. There is an automatic temperature control and speed adjustment system, which can guarantee the same moisture content.

Drying capacity (m³/h)

4-4.5 cubic meter

Feed rate

1.5-15m/min,16A circuit

Hot air fan power

5.5kW(13pcs)

Conveyor power

7.5kW,frequency regulation(2pcs)

Cooling fan power

5.5kW(1pcs)

Exhaust fan power

15kW(2pcs)

Power of a 10 ton boiler

16.5kW

general power

138.5kW

Actual electricity consumption

Approximately 90 kW per hour

Coverage area approx.

62 X 11 X 2.95m

Electrical components

Chinese brand or Schneide

PLC

Chinese brand or Mitsubishi

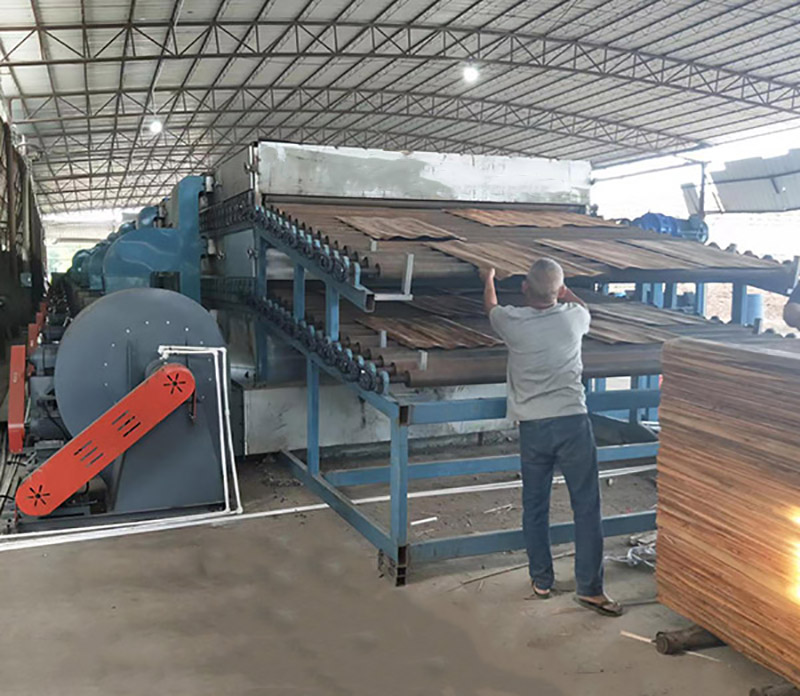

Veneer dryer 2-storey



Who are we?

"Shandong Shine Machinery" is located in Shandong Province, China. She has specialized in the production of veneer dryer for more than 20 years and is the vice president of Shandong Wood Processing Association. Our customers span more than 40 countries and regions around the world, and our technology has received recognition from customers both domestically and internationally. We regularly participate in professional exhibitions both in China and abroad, and have representatives in several countries. We welcome customers from all over the world to visit us.

Shine Factory

packageAt the exhibition


Our projects

Our projects

Commercial terms

1. Packaging and Transportation: Items will be shipped by export packages. During sea or rail transportation, as well as other modes of transport to the destination, the packaging must be able to protect the cargo from any damage and corrosion.

2. Quality Guarantee: All machines, except normal wear parts, are covered by a one-year warranty. After the warranty period expires, the seller will offer wear parts at a competitive price.

3. Payment terms: T/T with 30% as deposit and full balance paid before delivery.

4. Delivery Time: After receiving the deposit, we will start production and the product will be ready within about 30 working days. After the client checks the goods and pays the balance of 70% of the total contract value, we will deliver the goods at the time agreed by both parties.

5. Installation and commissioning

We will send videos and drawings for installation guidance. The seller can also send an engineer to the destination country to guide the installation and debugging, while our engineers are responsible for training the buyer's operators; The buyer should be responsible for our engineers' round trip airfare, visa costs, food and accommodation, and personal safety. And the buyer must supply one Chinese translator for our engineers. And the buyer must pay a salary of 100 US dollars per day to our engineer.

6. Our products are constantly updated, if there is any data discrepancy, please refer to the actual product.

Our services

Pre-sales services:

1. Free consultation on all types of equipment for plywood production.

2.Offering reasonable plan and free design according to customers' special requirements to help select equipment.

3.Welcome to visit our factory.

Services during sales:

1.Inspection of the machine before shipment from the factory.

2. Installation and configuration of equipment abroad.

3.Training of first line operators.

After sales services:

1.24-hour online service.

2.Providing videos with installation and configuration of equipment.

3.Providing technical support (Technical phone: +8619653165764). Possibility of providing on-site services to the client.
