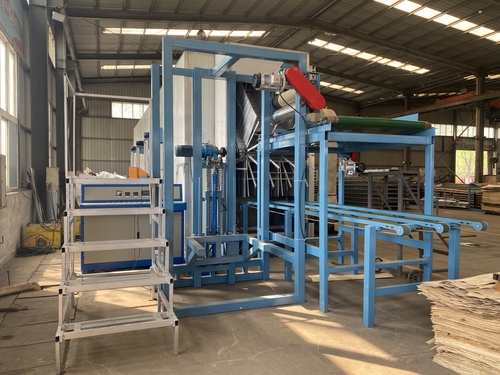

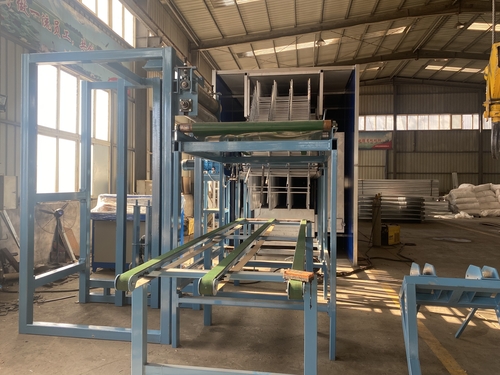

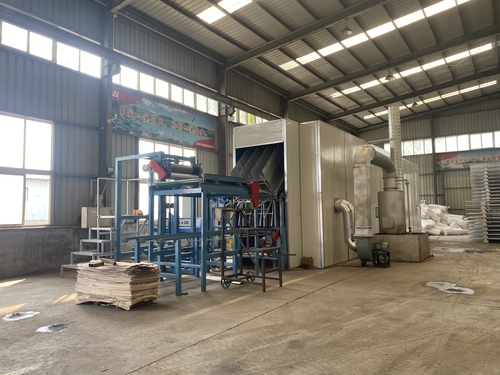

Vertical drying of wood veneer Shine
Economicaland Iverticaland IdryerAFBH30-20
Drying capacity: 1.5 m3/h.
Machine size (length X width X height): 21 * 4.8 * 4.1 m.
Total power (kW): 34.3 kW
Actual energy consumption: approximately 22 kWh per hour.
Fuel consumption (kg/h): 150
Main technical parameters
Model |
FBH30-20 |
Moisture contents(%) |
Fresh veneer is dried to within 20%. |
Productivity(m3/h) |
1.2-1.5 |
Total area (m) |
20 X 7 X 4 |
Hot air fan power (kW) |
1.5 X 6pcs=9 |
Traction motor power (kW) |
4 |
Exhaust fan power(kW) |
7.5 |
Built-in stove fan (kW) |
1.1 |
Pumping station power(kW) |
2.2 |
Water pump power (removing water film from dust) (kW) |
2.2 |
Conveyor chain power(kW) |
2.2 |
Feeding conveyor(kW) |
2.2 |
Veneer side entry device(kW) |
2.2 |
veneer receiving device(kW) |
2.2 |
Cooling fan (above furnace)(kW) |
0.75 X 2pcs=1.5 |
Total power(kW) |
36.3 |
Weight(tons) |
15 |
Container |
40HQ*1 |
Fuel consumption (kg/h) |
150 |
Price |
|
Number of employees (persons) |
3 per shift |
Principle of operation
This process controls air volume, heating temperature, material dwell time and feed rate to achieve optimal drying results. The tipping plate design is used to ensure high space efficiency, and during drying, the material is continuously mixed with the tipping plates to ensure uniform product quality. A unique air distribution device ensures a more precise match of heat distribution to the requirements of the material drying process.
Certification
FactoryShine
Our services
Pre-sales services:
1.Free consultation on the entire line of equipment for plywood production
2.Offer reasonable plan and free design according to customers' special requirements to help select equipment.
3.Welcome to our factory
Services during sales:
1. Inspect the machine before leaving the factory.
2.Installation and configuration of equipment abroad
3.Training of first line operators.
After-sales services:
1.Online service 24 hours a day
2.Providing videos with installation and configuration of equipment
3.Providing technical support (Technical phone: +8619653165764). A visit to the client service is available.
