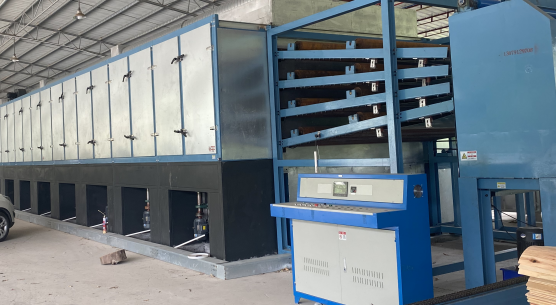

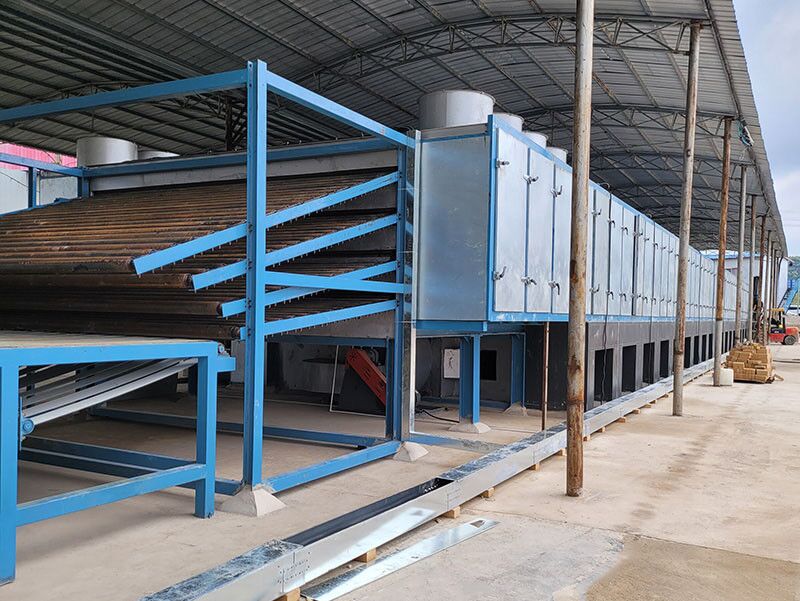

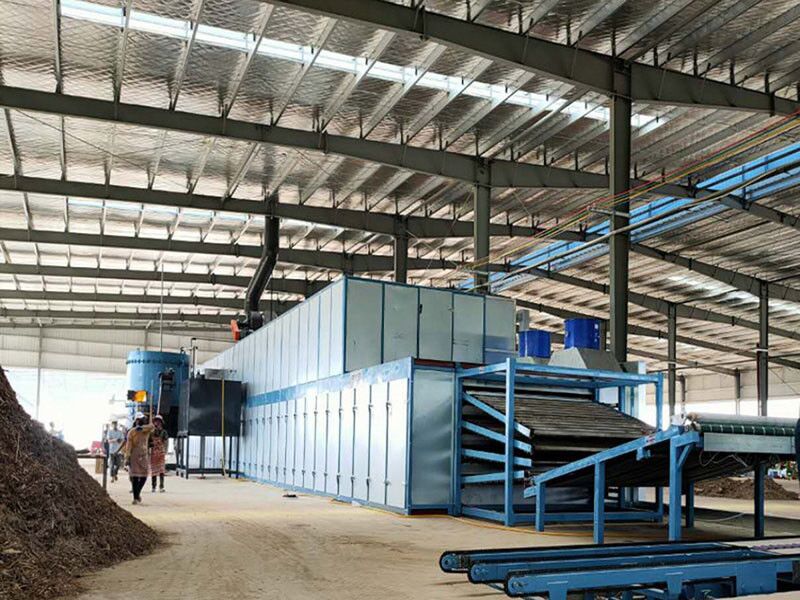

Roller dryer for veneer 4-story 32-m

Working width:3m

Productivity: 3.9-4.1 m³/h

Heating zones:28m

Cooling zone:4m


  Contact Now E-Mail Telephone WhatsApp
Product Details

There are many manufacturers in China  drying chambers  for lumber. There are several types of chambers produced, each with its own advantages and disadvantages, each type has its own method of drying wood. All drying methods have one principle: evaporation of moisture from inside the wood.

When talking about the quality of drying, first of all, they look at such parameters as drying time, tension and the difference in humidity inside the material.

Veneer drying is carried out using three main methods:

– conductive or contact. Veneer is dried when it comes into contact with a surface heated to 120-180 degrees;

  convective  Veneer drying?  when using the convective method? involves the evaporation of moisture from wood fibers after it is heated with hot air or flue gases;

  contact-convective or complex . A comprehensive method of drying veneer involves the use of hot air or a gas-air mixture and contact with a heated surface.


Veneer dryer parameters


Model 28+4 2 floors with boiler  Width 3.0m

Working width

3 m
Dryer temperature, ℃ 140-200
Roller material Steel pipe Q235B, φ89
Heating zones 28 m
Cooling zone 4m
Initial humidity 60-80%
Final humidity 10% +/-2
Productivity _ _ 3.9-4.1 m³/h
Feed rate 5-22m/min
Heating fans power 4kW*14
Cooling fan power 4kW*4
Conveyor power 5.5kW*4
Exhaust fan 11 kW*1
general power 112.2 kW
Electricity consumption 75.5 kW/hour

Saw



Certification


Сертификация


Shine Institute


Завод Shine


Our services


Pre-sales services:

1.Free consultation on the entire line of equipment for plywood production

2.Offer reasonable plan and free design according to customers' special requirements to help select equipment.

3.Welcome to our factory


Services during sales:

1. Inspect the machine before leaving the factory.

2.Installation and configuration of equipment abroad

3.Training of first line operators.


After sales services:

1.Online service 24 hours a day

2.Providing videos with installation and configuration of equipment

3.Providing technical support (Technical phone:  +8619653165764 ). A visit to the client service is available.
