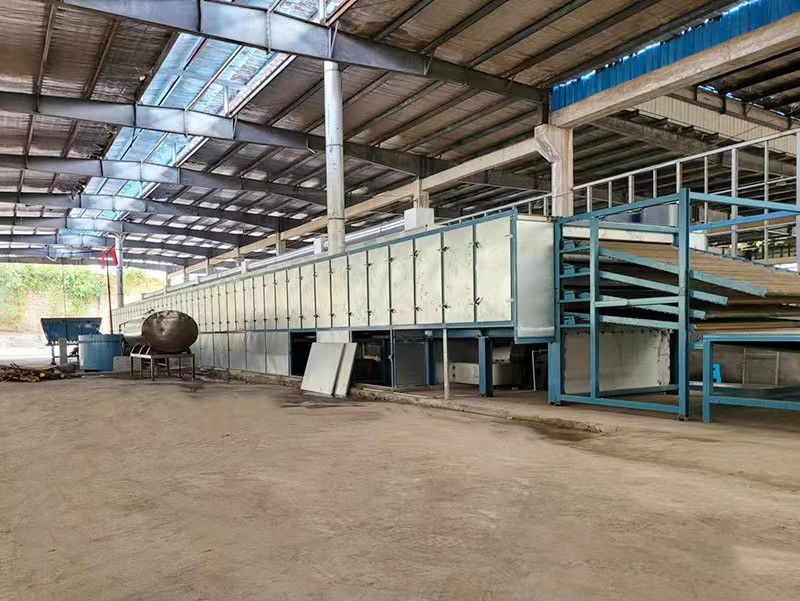

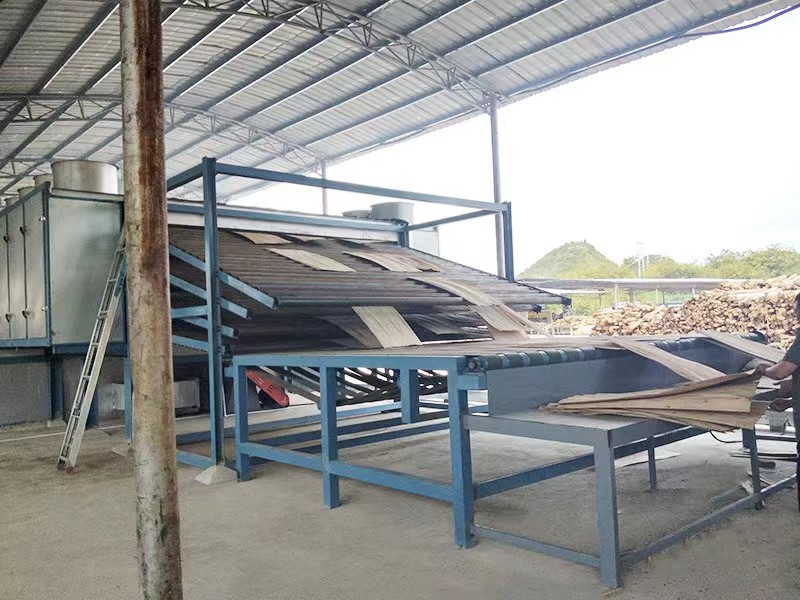

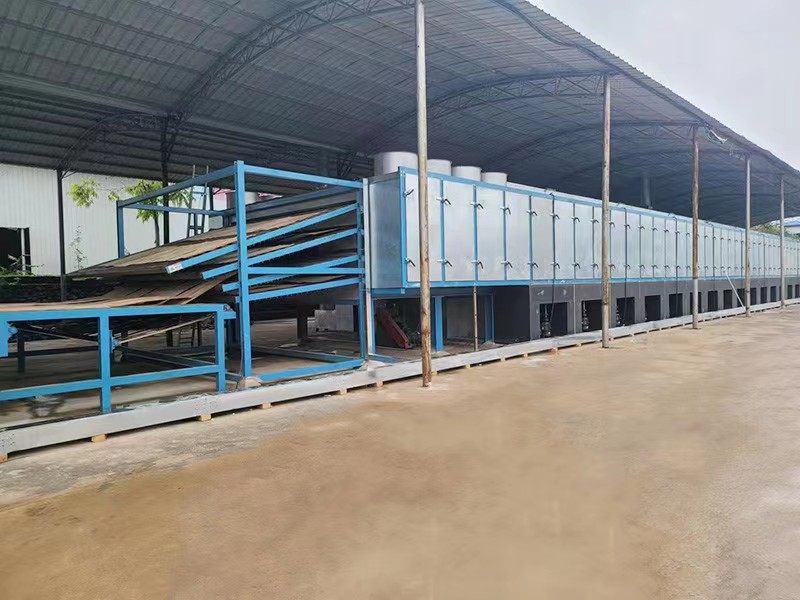

Roller dryer for veneer 4-story 50m

Working width:3m

Capacity:6-7 m³/h

Heating zones:46m

Cooling zone:4m


  Contact Now E-Mail Telephone WhatsApp
Product Details


The role of the 4-tier veneer roller dryer is to dry the veneer efficiently and evenly at all levels of the drying chamber. It provides the following benefits:

Increased productivity: The multi-level system allows more veneer to be dried at the same time, reducing drying time and increasing the overall productivity of the process.

Even Drying: The roller system moves the veneer through all levels of the drying chamber, ensuring even distribution of heat and airflow. This allows you to avoid uneven drying and the occurrence of defects on the veneer.

Temperature and Humidity Control: The dryer is equipped with a temperature and humidity control system at each level, which allows you to fine-tune and maintain optimal drying conditions for different types of veneer.

Energy Saving: The roller dryer uses heat and air more efficiently, which helps reduce energy consumption and save money.

Preserve Veneer Quality: With a uniform and controlled drying process, the 4-deck roller dryer helps preserve the quality of veneer by preventing it from drying out or overheating.

The 4-story 50-m veneer roller dryer means that it consists of four levels or floors, each of which accommodates the placement and drying of veneer. This model of roller dryer is designed for the production of large volumes of veneer, since its height allows you to increase the productivity and efficiency of the drying process.


Veneer dryer parameters


Model 46+4 4 floors with boilerWidth 3.0m

Working width

3m
Dryer temperature, ℃ 140-200
Roller material Steel pipe Q235B, φ102
Heating zones 46m
Cooling zone 4m
Initial humidity 60-80%
Final humidity 10% +/-2
Performance 6-7m³/h
Feed rate 5-22m/min
Heating fans power 4kW*23
Cooling fan power 4kW*4
Conveyor power 5.5kW*4
Exhaust fan 11kW*2
general power 152kW
Electricity consumption 106.4 kW/hour

Video


The dryer has warm and cold wind zones.


Cooling chamber


For dryers with a capacity over 4m3/h, the cooling chamber is separate so that the veneer at the exit is not hot and is immediately suitable for further processing.

Cooling chamber


High quality videos


Rollers with a diameter of 102 mm, wall thickness 2.5 mm. Roller spacing 330 mm.
