Automatic glue dispenser
Automatic glue dispenser
This machine is a necessary equipment for wood paneling, used to apply glue evenly to core dowels and small sizes, improve productivity and save production costs. Lined roller with high quality natural rubber with high mechanical strength, suitable hardness, good wear resistance, good aging resistance and long service life.

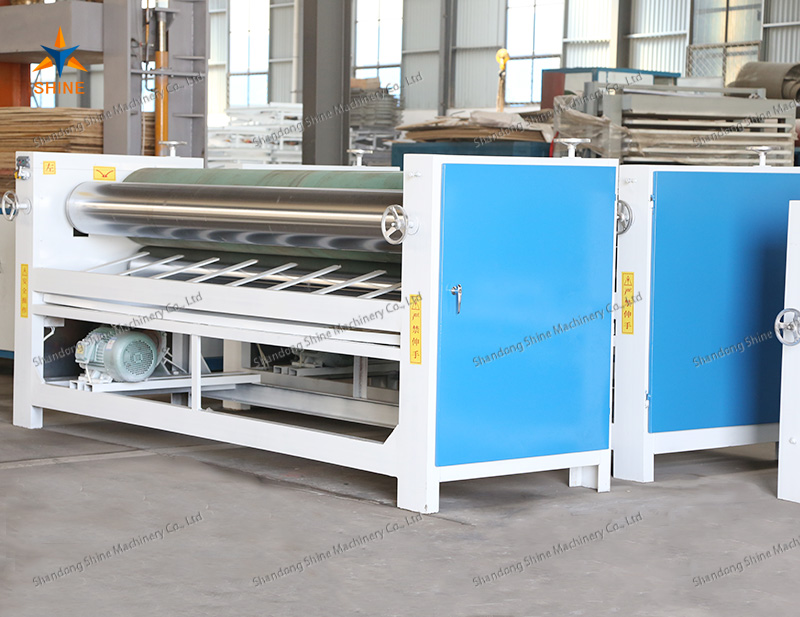

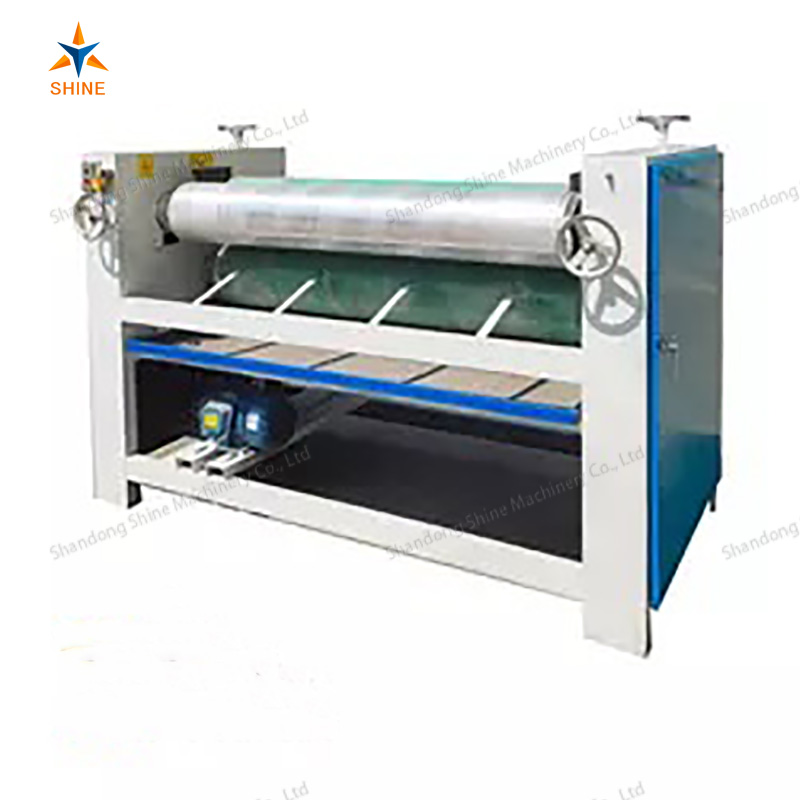

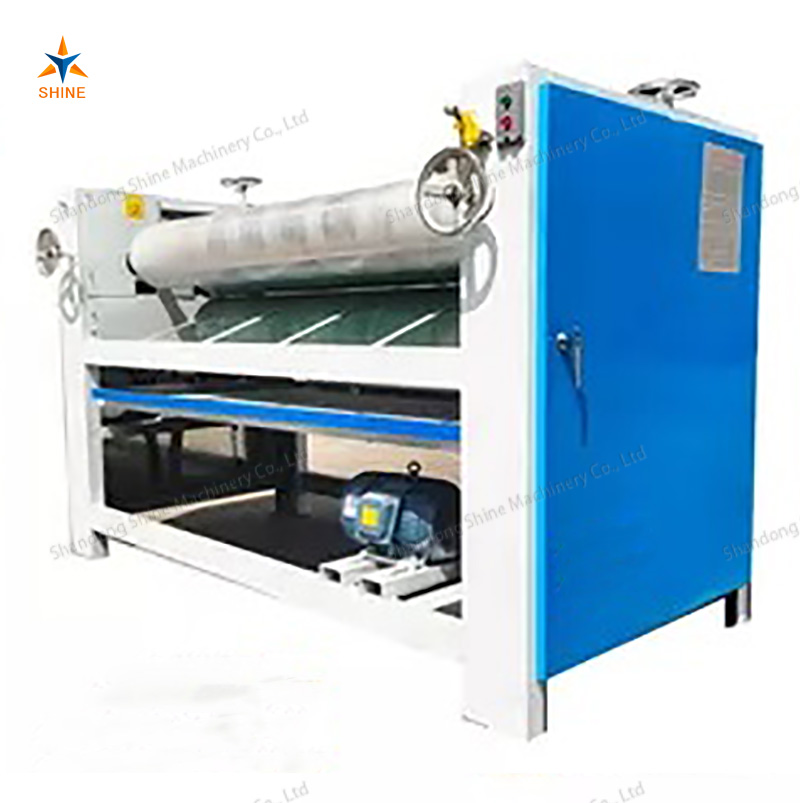

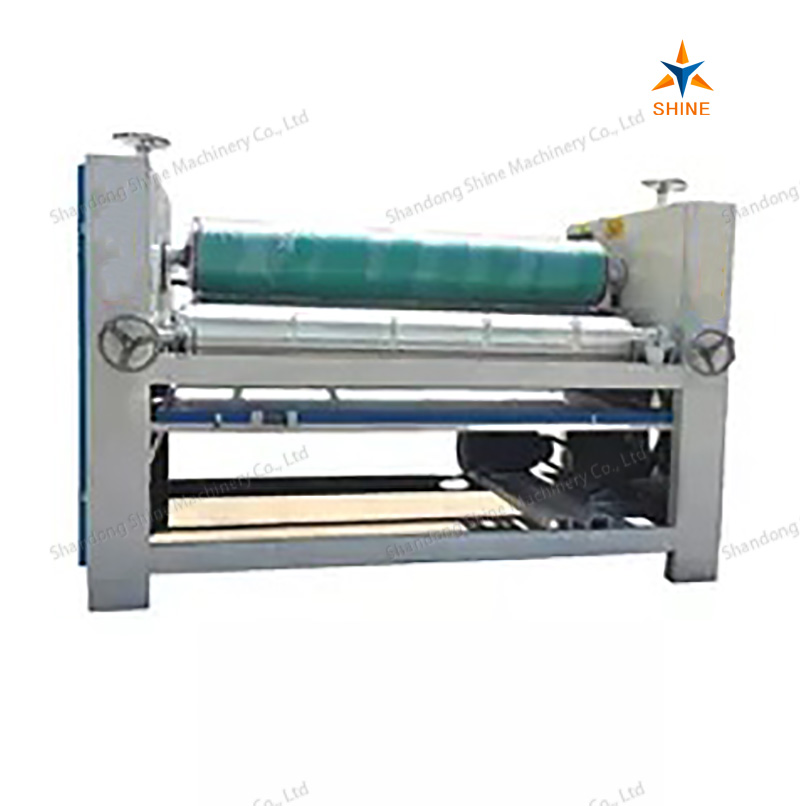

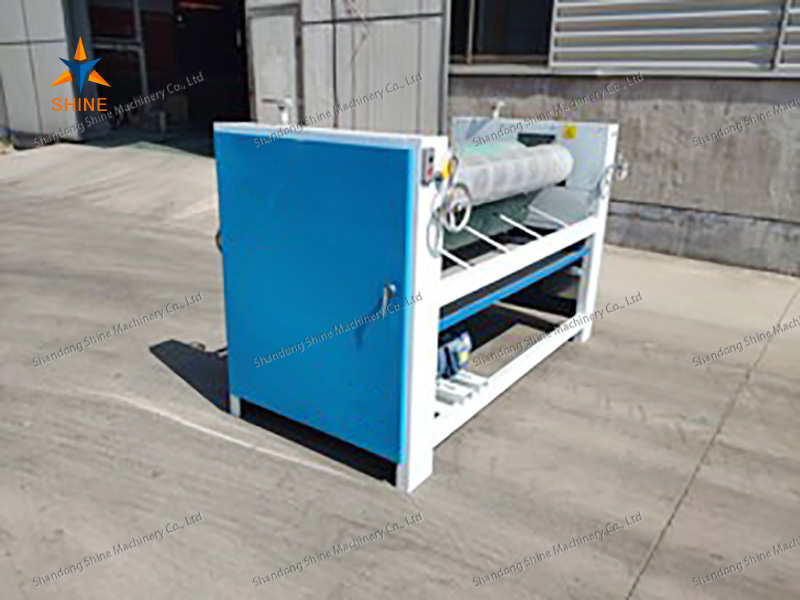

Gluing machines
The automatic glue applicator is used to evenly apply glue to the dowels. Applying the glue evenly with the right amount of glue improves the quality of the plywood and saves a huge amount of costs in the long run. The gap between the glue rollers and the doctor roller, in which stepless rotation adjustment is available, can be freely adjusted according to the viscosity and the amount of glue to be applied.
Waste scrapes the glue roller. When they are inserted into the gap between the adhesive rolls, the rolls are quickly separated by an air cylinder. Thus, the waste falls down and cannot scrape the glue roller. This machine adopts Morda model stepless inverter, which can effectively control the motor running stability and output power. When working with variable speed, it can easily adjust the required glue spreading speed according to the actual glue application situation (without stopping the speed).
In addition, this machine is equipped with a special emergency stop switch, which can immediately stop the running machine in emergency conditions. The operator can activate the emergency switch within a very short time to ensure the safety of the operator.
Peculiarities:
Uniform coating, high productivity, saving glue, reducing the number of employees and reducing costs.
Increasing the use of glue and minimizing its consumption.
Ease of operation and maintenance.
Parameters of automatic glue dispenser
Maximum adhesive application width |
1300mm |
Max Working Thickness |
60mm |
rubber roller diameter |
200 mm |
Adhesive application speed |
23m/min |
Engine power |
2.2 kW |
Overall dimension |
2100*1000*1 300mm |
Net weight |
700 kg |
Visiting clients

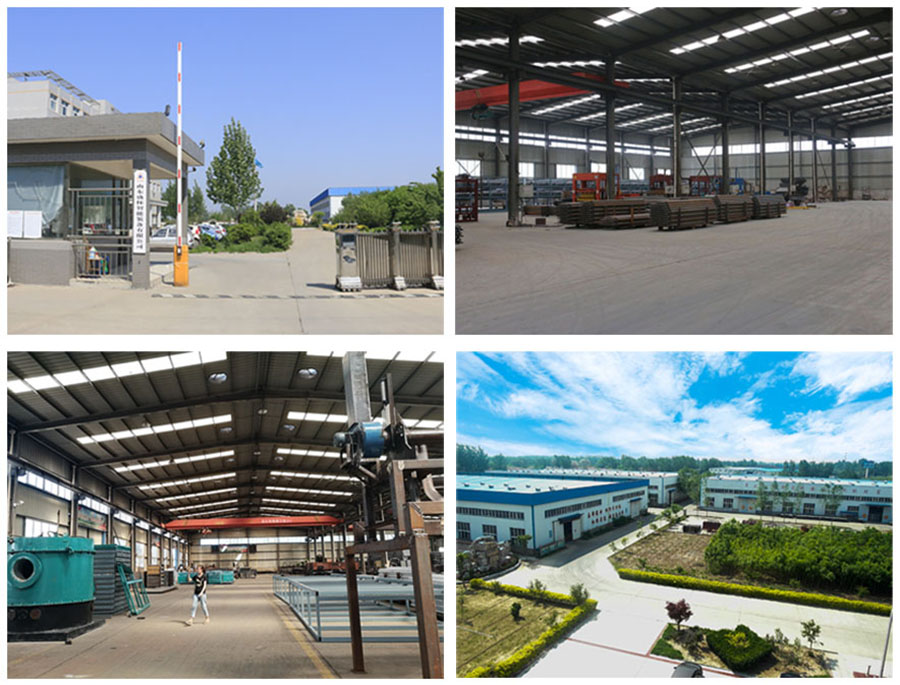

Factory tour
Certification
Our services
Pre-sales services:
1. Free consultation on the entire line of plywood production equipment
2.Offer reasonable plan and free design according to customers' special requirements to help choose equipment.
3.Welcome to our factory
Services during sales:
1. Inspection of the machine before leaving the factory.
2.Installation and configuration of equipment abroad
3. Training of first line operators.
After-sales services:
1. Online service 24 hours a day
2.Providing a video with the installation and configuration of equipment
3. Providing technical support (Technical phone: +8619653165764 ). Service of departure to the client is possible.
