Vertical veneer dryer FBH30-13
Vertical Veneer Dryer
The vertical dryer has a unique fast loading structure, and the loading speed of the venus is fast, which can save labor and cost for the enterprise. With the unique hot air circulation mode inside the equipment, the hot air volume of the drying line is large, and the hot air of each section is hot. The air flow is uniform, the temperature is uniform, and the countercurrent drying cycle is applied to ensure that the venus dry quickly and the quality is uniform.

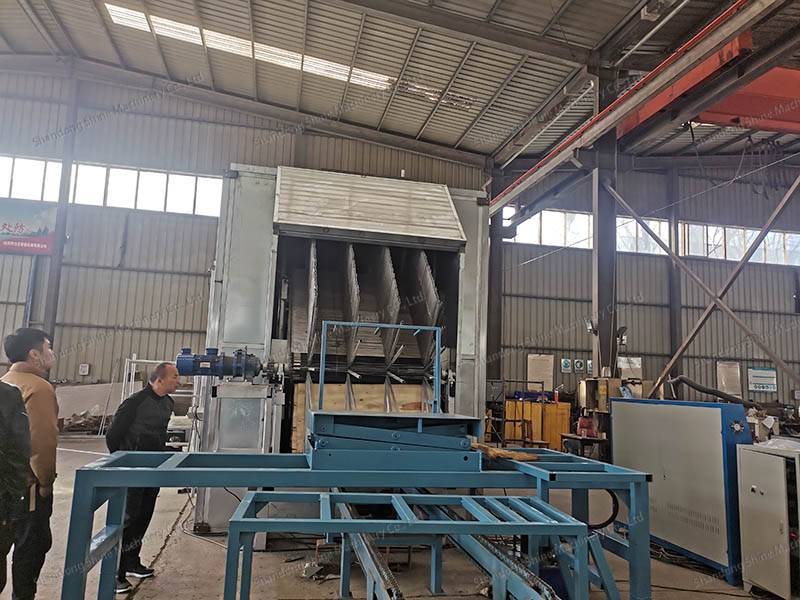

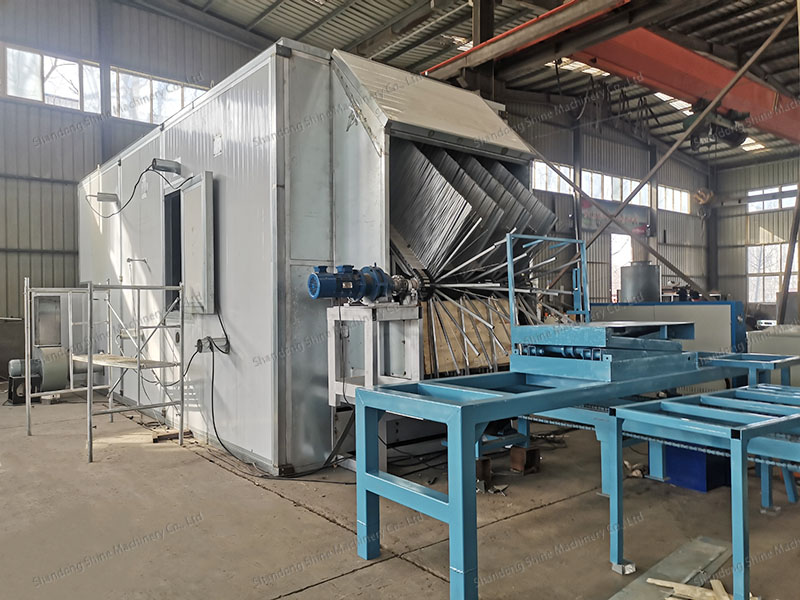

Vertical Veneer Dryer
The vertical veneer dryer has a very low purchase cost, and the continuous veneer dryer has a small footprint. The equipment uses three-dimensional veneer loading, and its area is only two-thirds that of a roller dryer. The equipment has high thermal efficiency and low drying costs. By using the company's series of related products of the company's high-efficiency and environmentally friendly heat source, waste reheating technology can be effectively used.

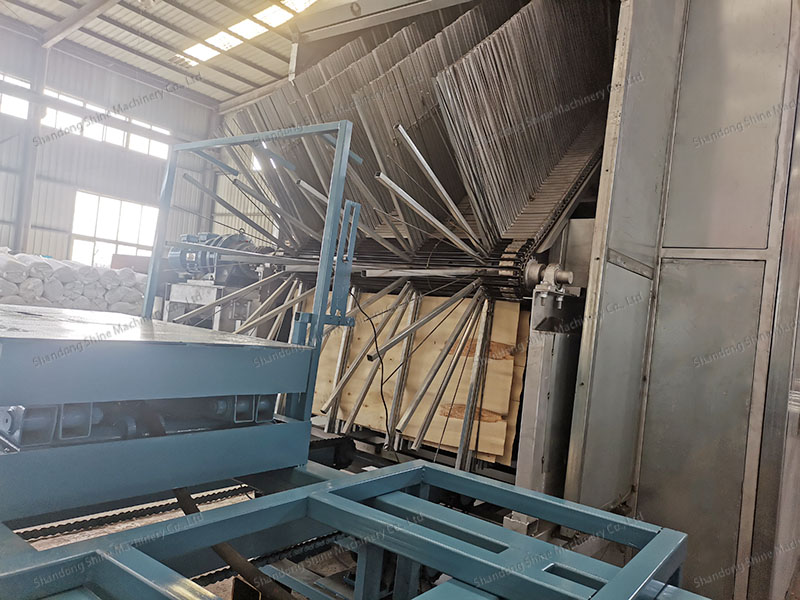

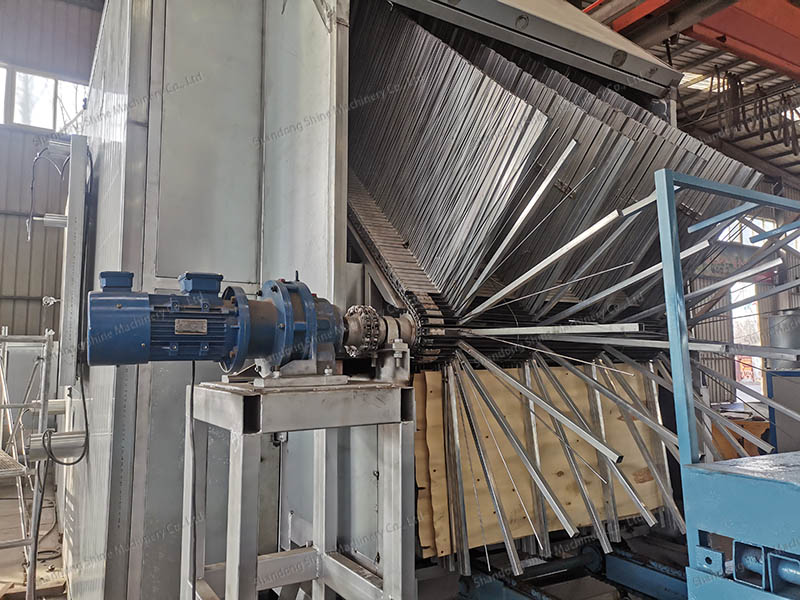

Vertical core dryer: Uses a chain to feed the veneer or finished board into the drying chamber for circulating drying. The vertical dryer is a summary of the advantages and disadvantages of many previous veneer dryers after years of market research. Our dryer has the following advantages:
1.Low drying cost. The drying cost of this vertical machine is less than $8/m³, which is 30-60% of the drying cost of other machines.
2.Low cost of equipment. Our company has reduced the loss of production of raw materials and auxiliary materials and improved work efficiency through the standardization and modular production of vertical drying equipment parts.
3.High drying performance. The vertical plywood production method increases the load capacity of veneer by 30-80% compared to other dryers.
4. This equipment must be locally installed at the customer's factory, so this equipment can be installed according to the specific requirements of the customer's location.
Note 1. Equipment size can be customized according to customer's actual veneer size.
Options
Model |
FBH30-13 |
Final Moisture (%) |
Fresh veneer dried up to 0-5% |
Capacity (m³/h) |
2 |
Dimensions (length*width*height, m) |
13×3×4 |
Heating fans power (kW) |
9(600Vx10) |
Conveyor power (kW) |
1.5 |
Power of exhaust fan (kW) |
3 |
Built-in boiler (kW) |
1.5 |
Total power (kW) |
15 |
Fuel consumption (kg/h) |
200 |
Certification
Our Factory
Sending and visiting customers
Our services
Pre-sales services:
1. Free consultation on the entire line of plywood production equipment
2.Offer reasonable plan and free design according to customers' special requirements to help choose equipment.
3.Welcome to our factory
Services during sales:
1. Inspection of the machine before leaving the factory.
2.Installation and configuration of equipment abroad
3. Training of first line operators.
After-sales services:
1. Online service 24 hours a day
2.Providing a video with the installation and configuration of equipment
3. Providing technical support (Technical phone: +8619653165764 ). Service of departure to the client is possible.
